3 Series E36 318i (M43) TOUR
61 62 100

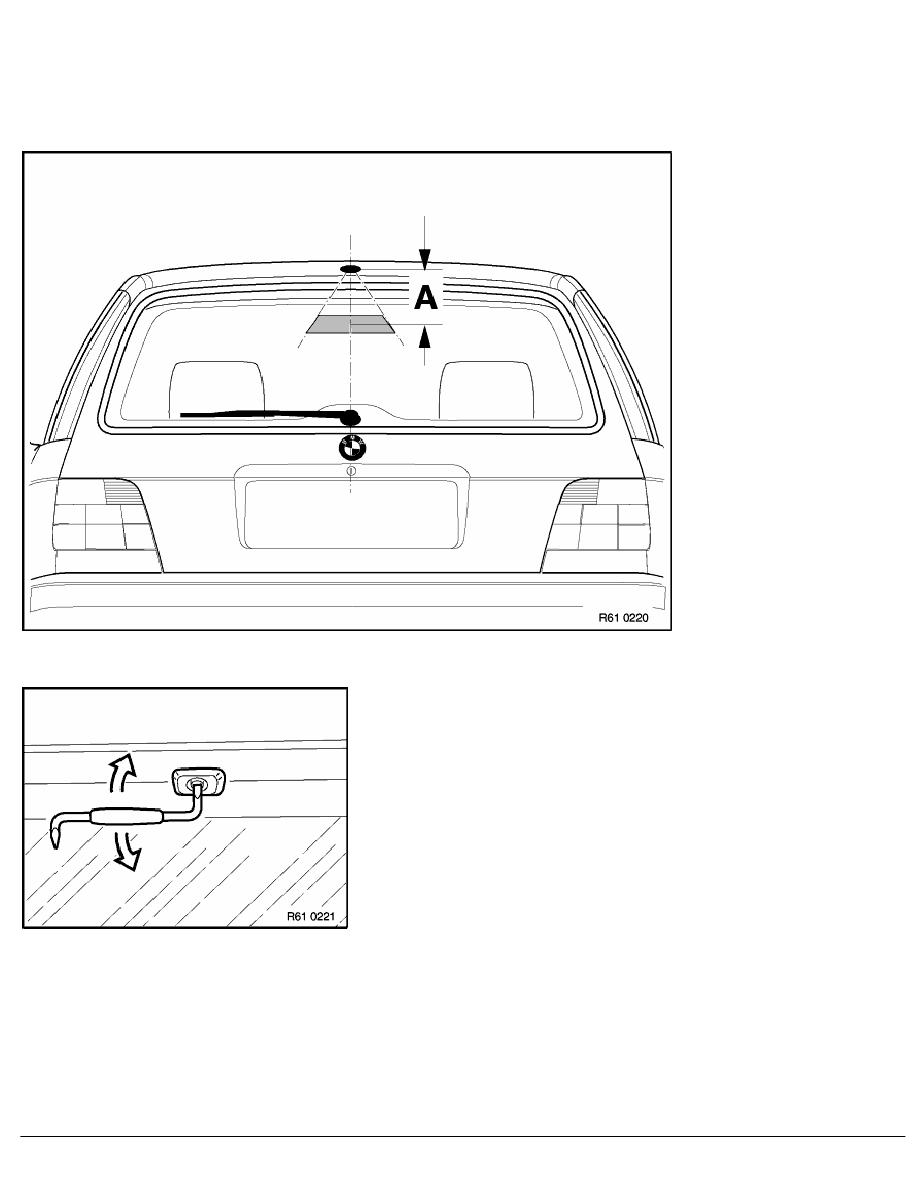

Adjusting spray nozzle on rear window
washer unit.
Note:
The spray should strike the centre of the panel.
A
approx. 10 cm
Caution!
Do not insert any sharp objects in the nozzle (risk of
damaging spray angle)
Mark contact point with crepe tape an adjust spray nozzle to 3.5
mm on slot with angled screwdriver.
RA Adjusting spray nozzle on rear window washer unit.
