3 Series E36 318i (M44) SAL
65
21
70
22
75
24
80
26
85
29
90
31

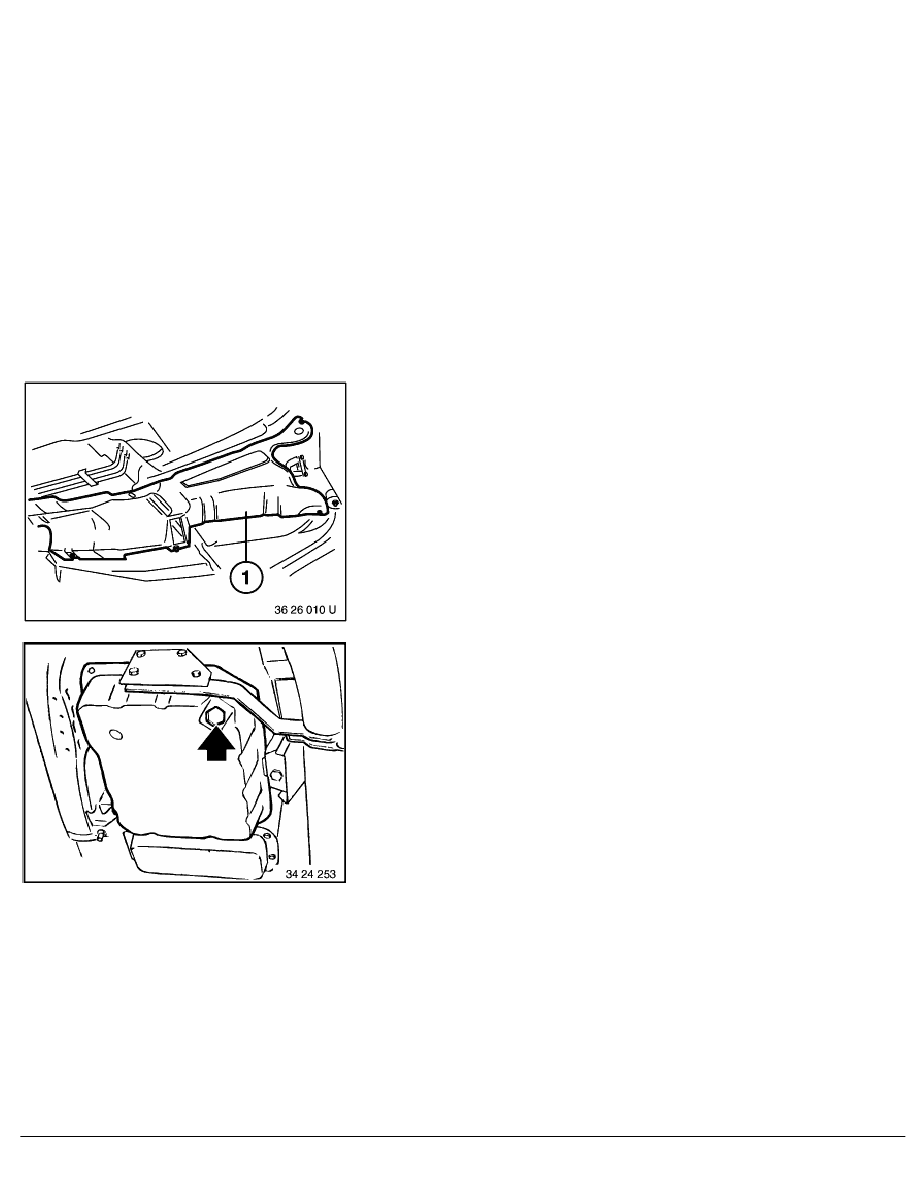

Top up ATF only using special tool 24 0 080.
Version without oil filler pipe:
Oil filler pipe was discontinued as of 2.91.
Replenish ATF through filler opening on underside of oil pan.
Check the actual level, and top up if necessary.
Car must be unloaded and stationary on a level surface.
Only check oil level at a transmission oil temperature of 30 ... 55
°
C.
Interrogate ATF temperature with Service Tester or MoDiC (refer
to Test Plan).
Run engine in selector lever setting "P" or "N".
Unscrew filler plug (1).
