3 Series E36 318i (M44) SAL

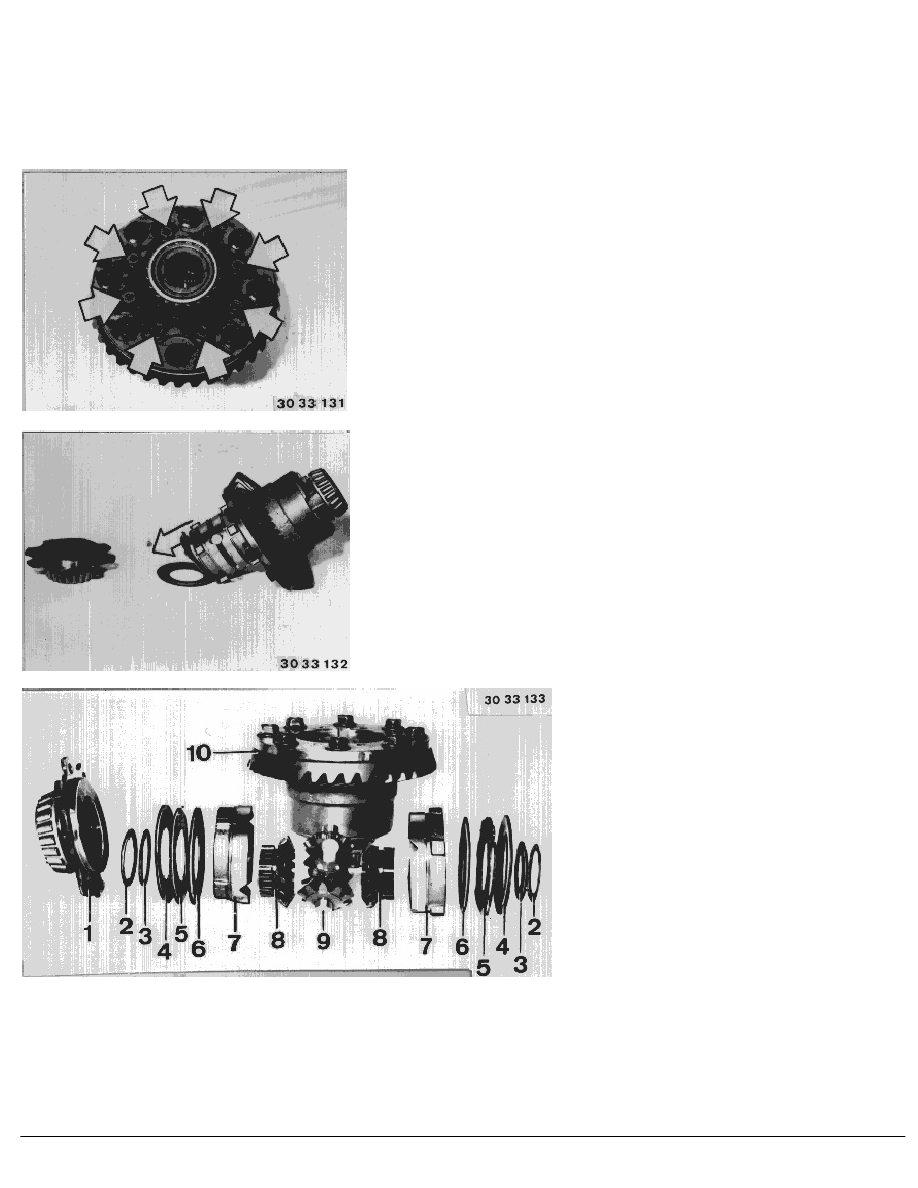

Installation:
Diaphragm spring (2) with inside curved surface facing
differential shaft (up).
Insert thrust washer (3) with oil pockets facing up to
differential shaft.
Installation:
Insert diaphragm spring (4) with inside curved surface facing
differential shaft and outer plate (5) with four tabs. Insert
moybdenum coated inner plate (6) and thrust ring (7).
Installation:
Install differential side gear (8) by turning into guides or
splines of inner plate.
Install differential gears with shafts (9) and a second differential
side gear (8).
Installation:
Install thrust ring (7), molybdenum coated inner plate (6) and
outer plate (5).
Insert diaphragm spring (4) with inside curved surface facing
differential shaft (down).
