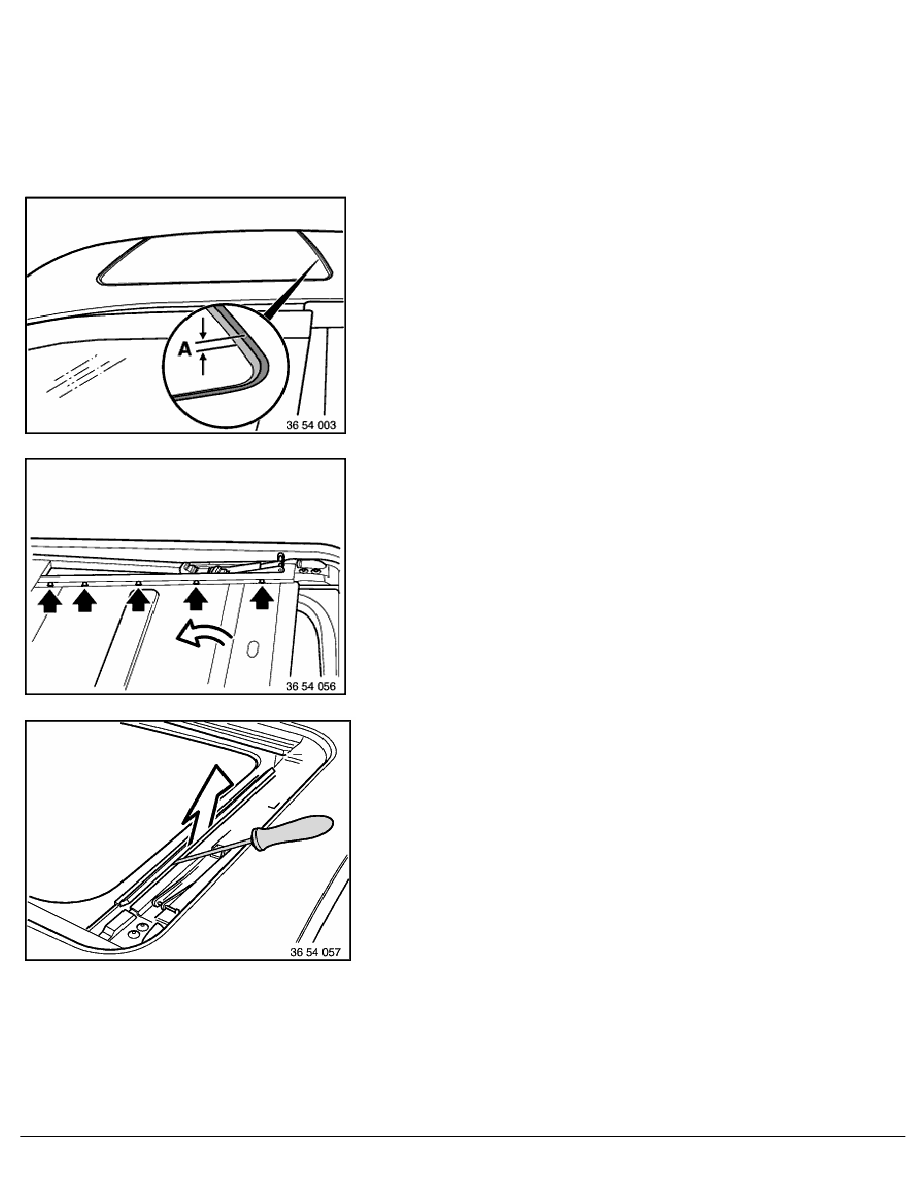

Run sun roof mechanism back by approx. 50 mm.

Unscrew left and right bolts. Lift off cover.

Take out sliding rails.

Installation:

Insert sliding rails, push back and clip on.

Tightening torque,

refer to Technical Data

Pull off edge guard in left-hand zone.

Partially pull off edge guard on door. Remove left sun visor and
holder.

Push left front plate between car roof liner and rivets to be drilled
off.

Caution!

Extract burrs from drilling simultaneously.

Drill off both rivets.
