3 Series E36 318is (M42) COUPE
61 31 020
Removing and installing/replacing ignition
starter switch

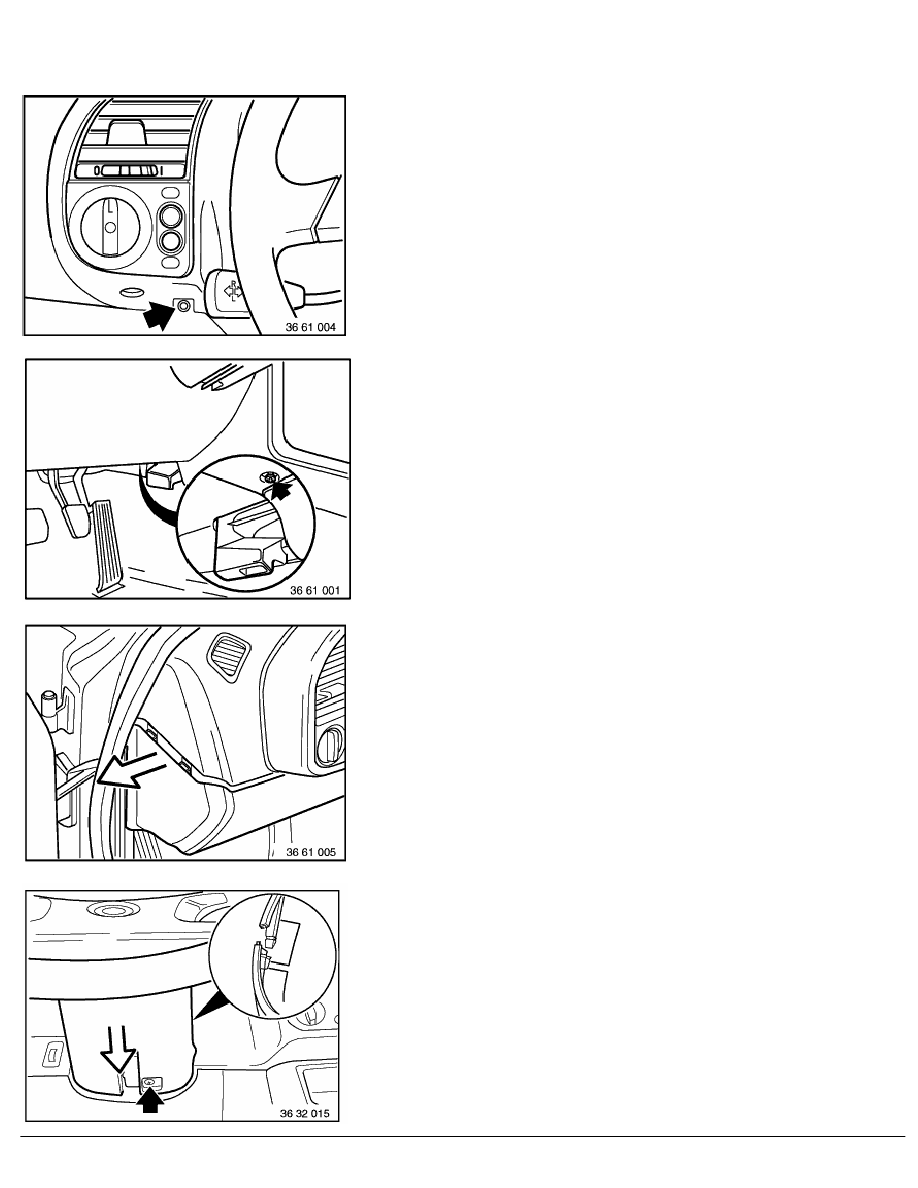

Unscrew screw.
Unscrew screw.
Pull bottom trim panel to the side out of the clips.
Remove screw and take off lower section of steering-column
panelling.
RA Removing and installing/replacing ignition starter switch
