Replacing Microfilters for Heater in 3 Series E36 318is (M42) COUPE
64 31 009
Replacing microfilters for heater

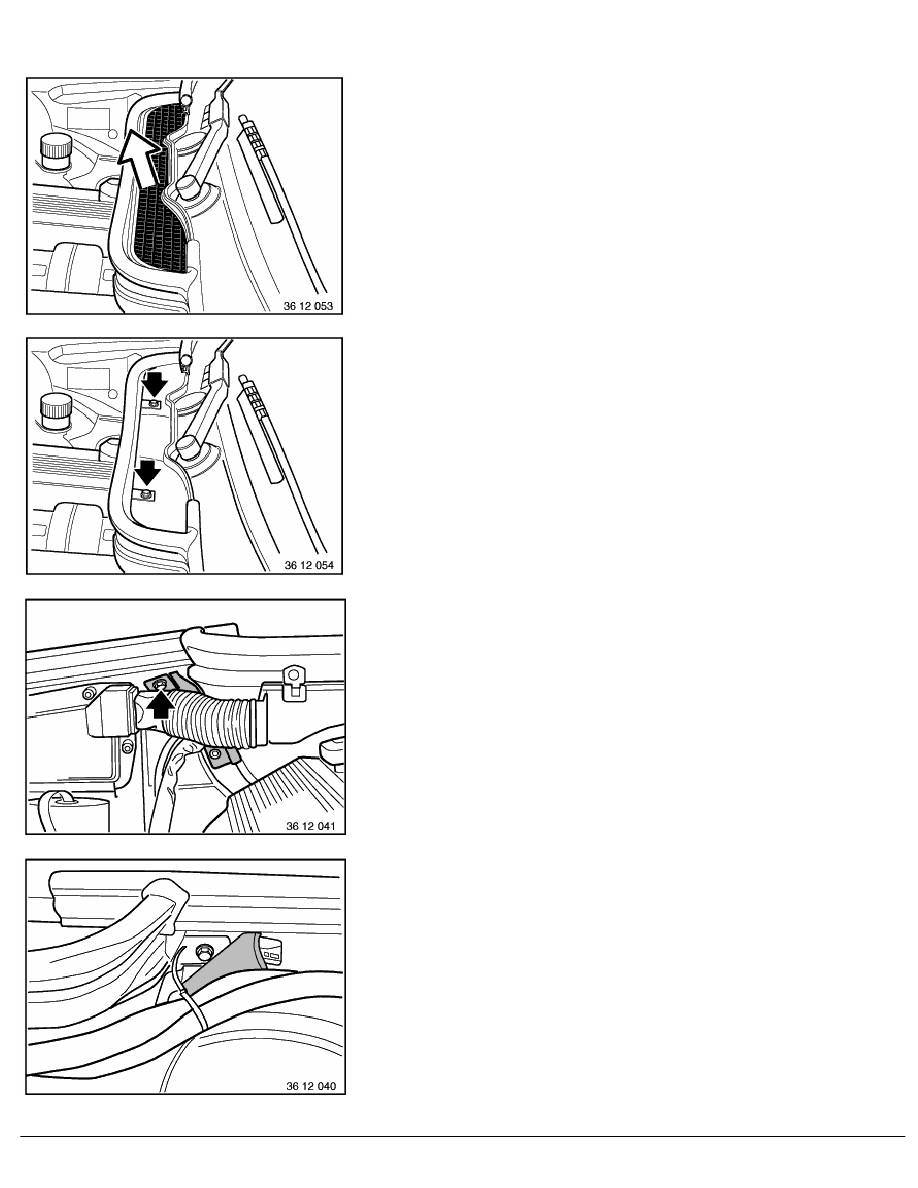

Pull off rubber part and pry out grill.
Remove screws from cable channel.
Remove screws on right-hand side and take off holder.
Remove screw on left side and pull out air collector in upwards
direction.
Note:
Air collector will be difficult to pull out.
RA Replacing microfilters for heater
