3 Series E36 318is (M44) SAL

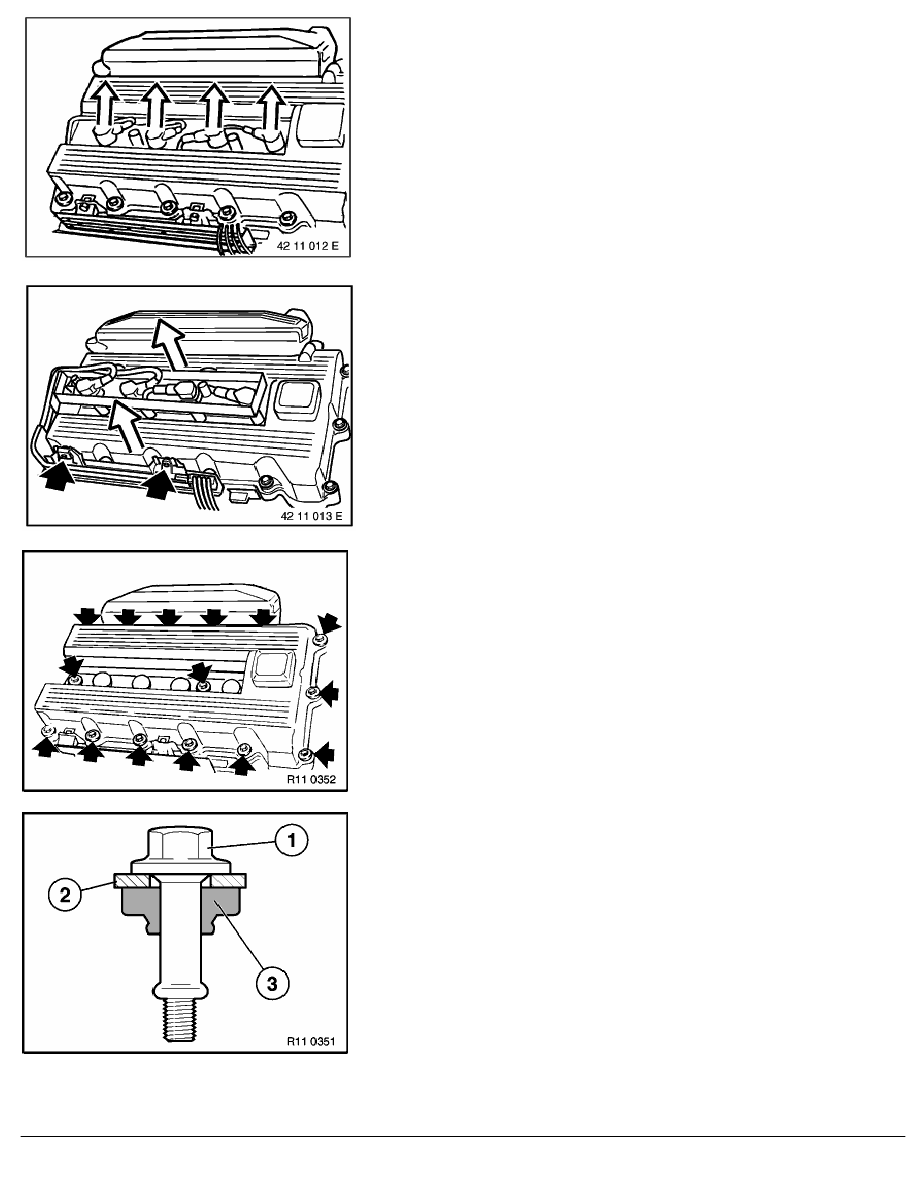

Remove spark-plug connectors.
Loosen the ignition lead and remove it with the cable duct.
Pull off the hose for the engine breather.
Unscrew cover bolts and remove cylinder head cover.
Note:
Cylinder head cover is separated from cylinder head by rubber
mounts and seals to insulate it from vibration.
Carefully note arrangement of cover retaining fixture.
1.
Cap screw
2.
Washer
3.
Rubber mount
RA Removing and installing/sealing cylinder head cover (M44)
