3 Series E36 318tds (M41) COMP
11 12 500
Removing and installing cylinder head (M41)
(engine removed)
Remove intake filter housing.
Removing exhaust manifold,
refer to 11 62 000
Unfasten right engine mounting block.

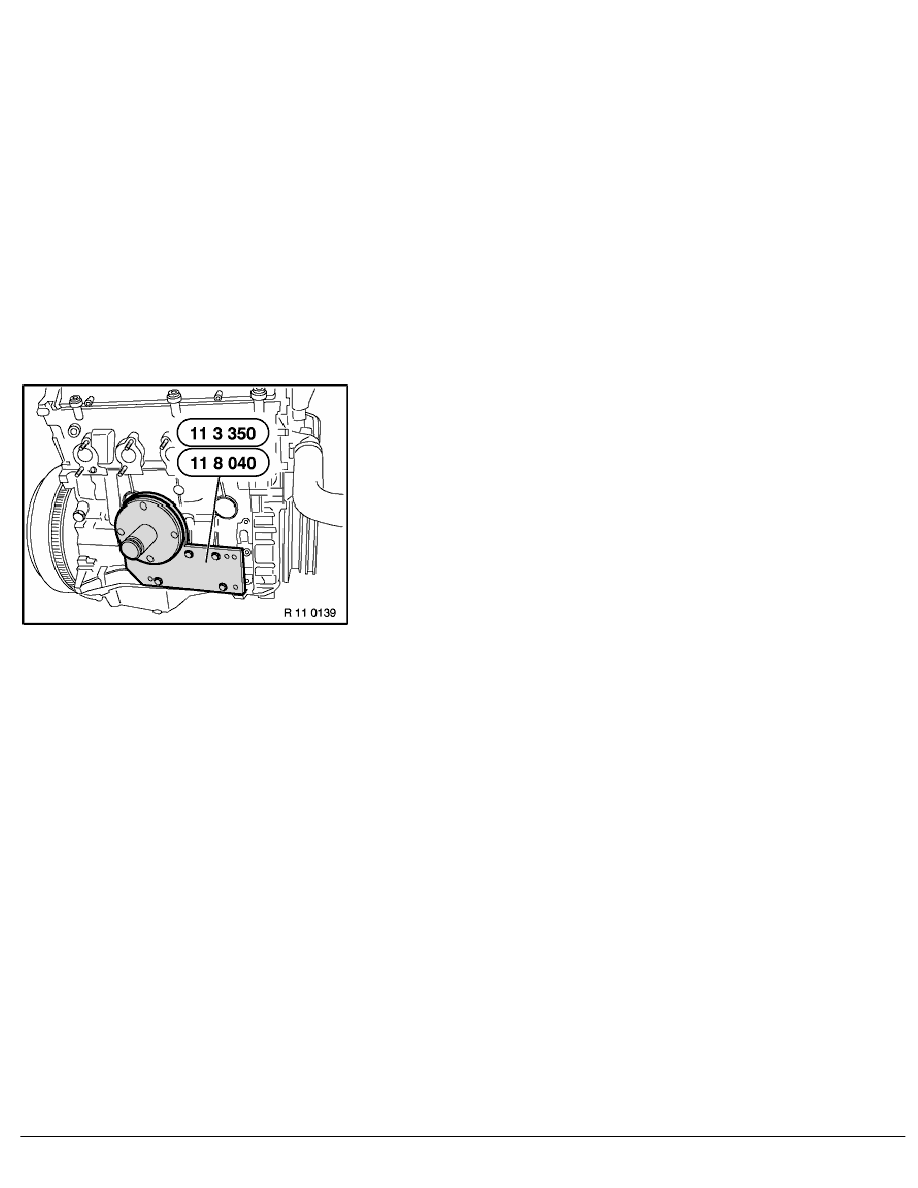

Secure engine to assembly frame, special tool 00 1 490, with
retaining plate, special tool 11 8 040.
Note:
Special tool 11 3 350 can be used again after first being
reworked.
Subsequent procedure described in section on removing and
installing the cylinder head,
refer to 11 12 100
RA Removing and installing cylinder head (M41)
