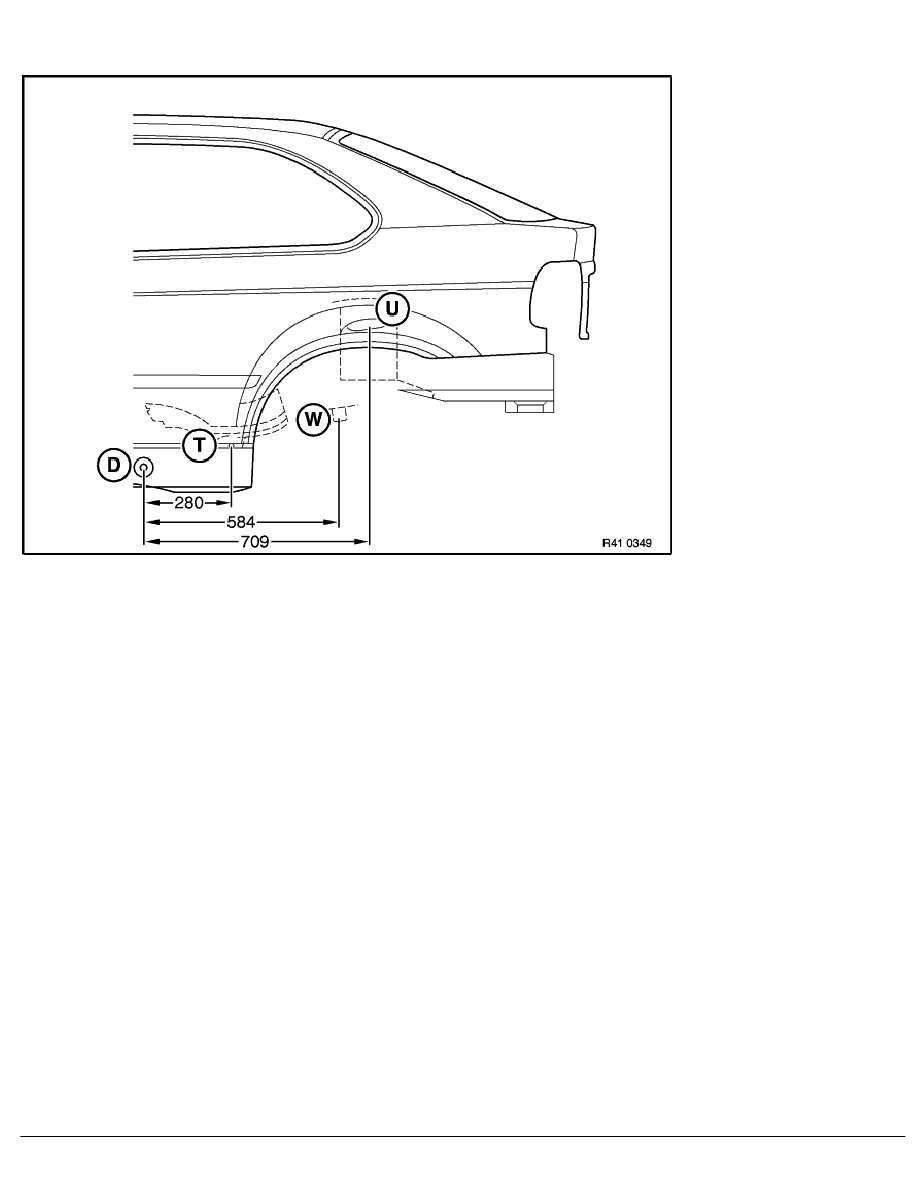

Frame alignment control dimensions of body, side view of BMW E 36 compact
Dimensions in mm,
Tolerance: dimension over 1000 mm
±
2.0 mm,
Tolerance: dimension up to 1000 mm
±
1.0 mm.
Note:
Only use the indicated values for a rough inspection.
Repairs can only be carried out correctly with the approved set of attachments and a straightening bench.
T
Lateral rear axle support
U
Rear vibration damper support
W
Rear spring support
RA Frame alignment control dimensions of body, side view of BMW E 36 compact
