52 10 150

Removing and installing or replacing lower
section of left or right front seat mechanism
(compact)

Remove rear panel,

refer to 52 10 450

Remove both seat rails,

refer to 52 10 140

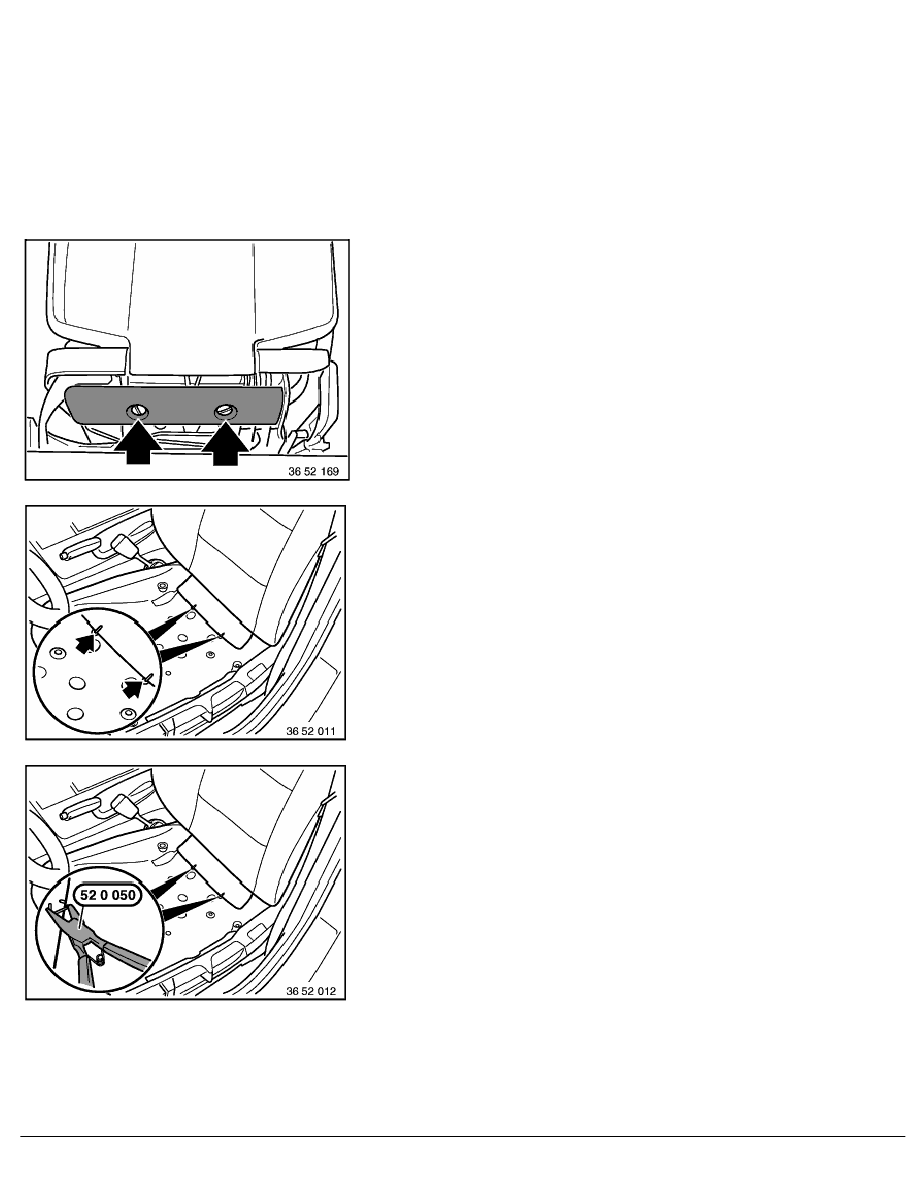

Remove screws and shoe guard.

Cut off retainer.

Installation:

Lock new retainer by bending it with special tool 52 0 050.

RA  Removing and installing or replacing lower section of left or right front seat m

BMW AG - TIS

07.02.2013  03:17

Issue status (12/2007) Valid only until next DVD is issued
