3 Series E36 318tds (M41) COMP
52 10 154
Removing and installing or replacing backrest
frame on left or right front seat (compact)
Remove front seat,
refer to 52 10 000
Removing rear wall,
refer to 52 10 450
Removing seat cushion,
refer to 52 10 079

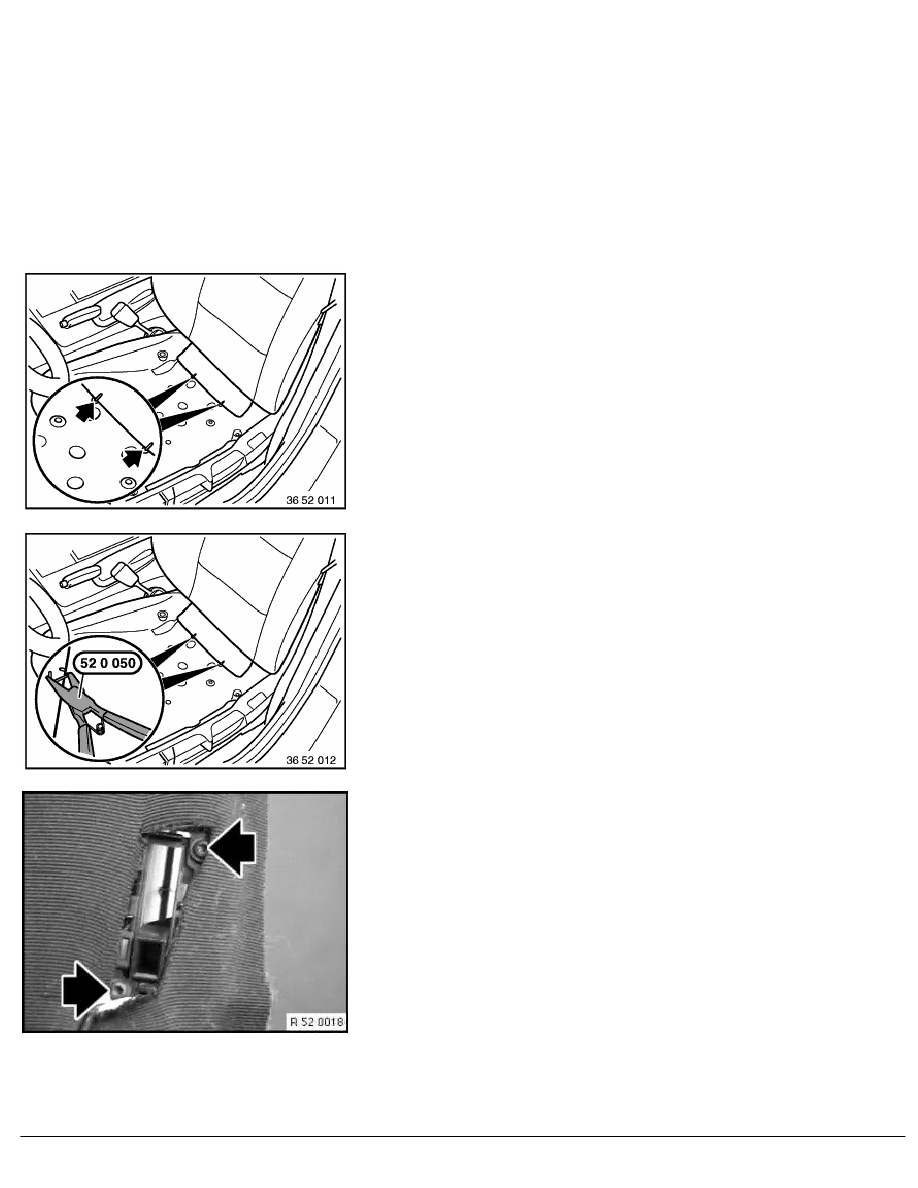

Loosen retainers.
Installation:
Lock new retainers by bending with special tool 52 0 050.
Unfasten screws and lift actuating mechanism for seatback
release inwards to remove.
Passenger seat:
In addition, dismantle internal seatback release.
RA Removing and installing or replacing backrest frame on left or right front seat
