3 Series E36 318tds (M41) COMP
52 10 079
Replacing mounting clips for front seat
cushion padding
Run seat up as far as possible.
Caution!

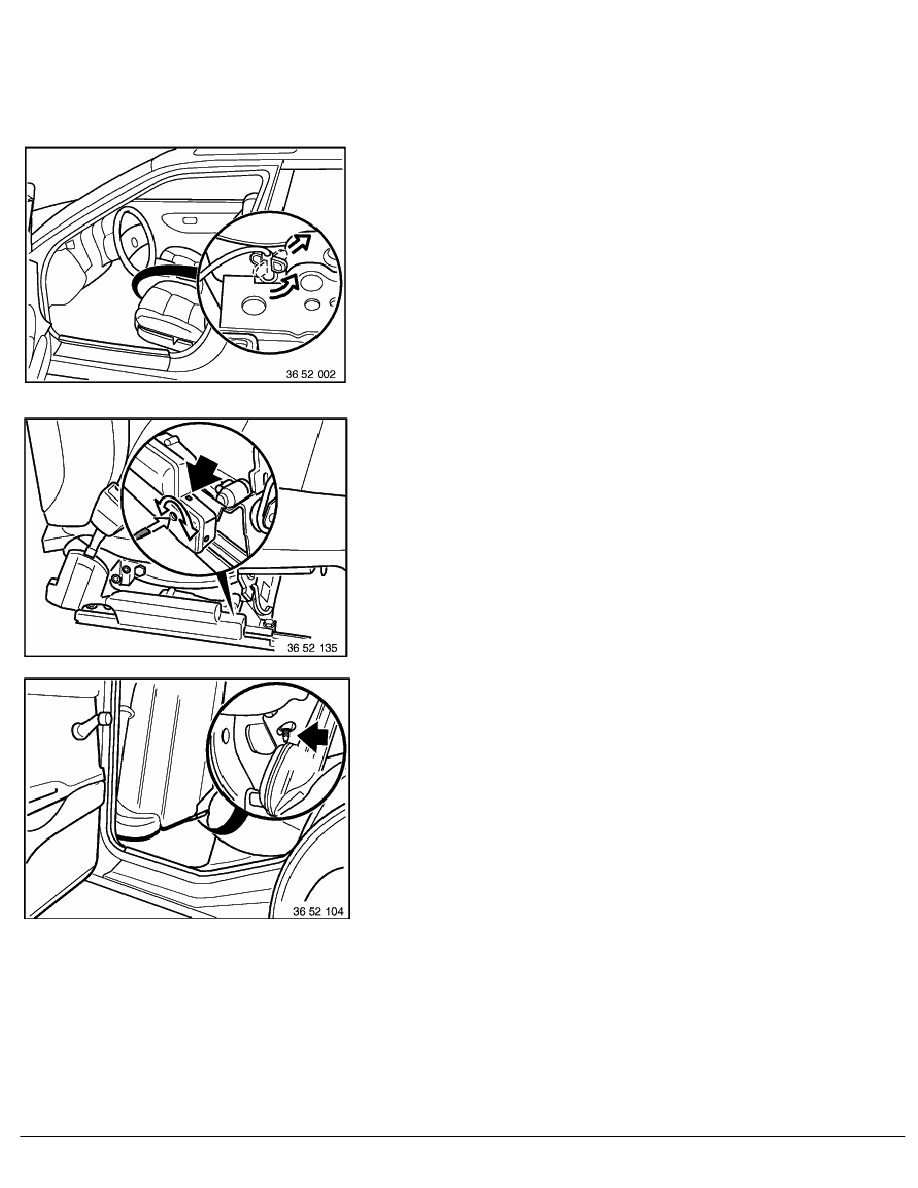

Deactivating belt-lock tightener:
Manual Seats:
Turn toggle 90
°
and detach cable upwards.
Installation note:
Attach cable carefully.
Check for correct seating of cable.
Seat belt lock tensioner will not work if seating is incorrect!
Refer to General Information in gr. 72.
Power Seats:
Turn slotted head screw until green mark in sight glass changes to
red.
Installation note:
Turn mark to green.
Seat belt lock tensioner will not work if at red mark!
Cut off clips using snippers.
RA Replacing mounting clips for front seat cushion padding
