3 Series E36 318tds (M41) TOUR
11 22 500
Removing and installing or replacing flywheel
(M41)
(clutch removed)

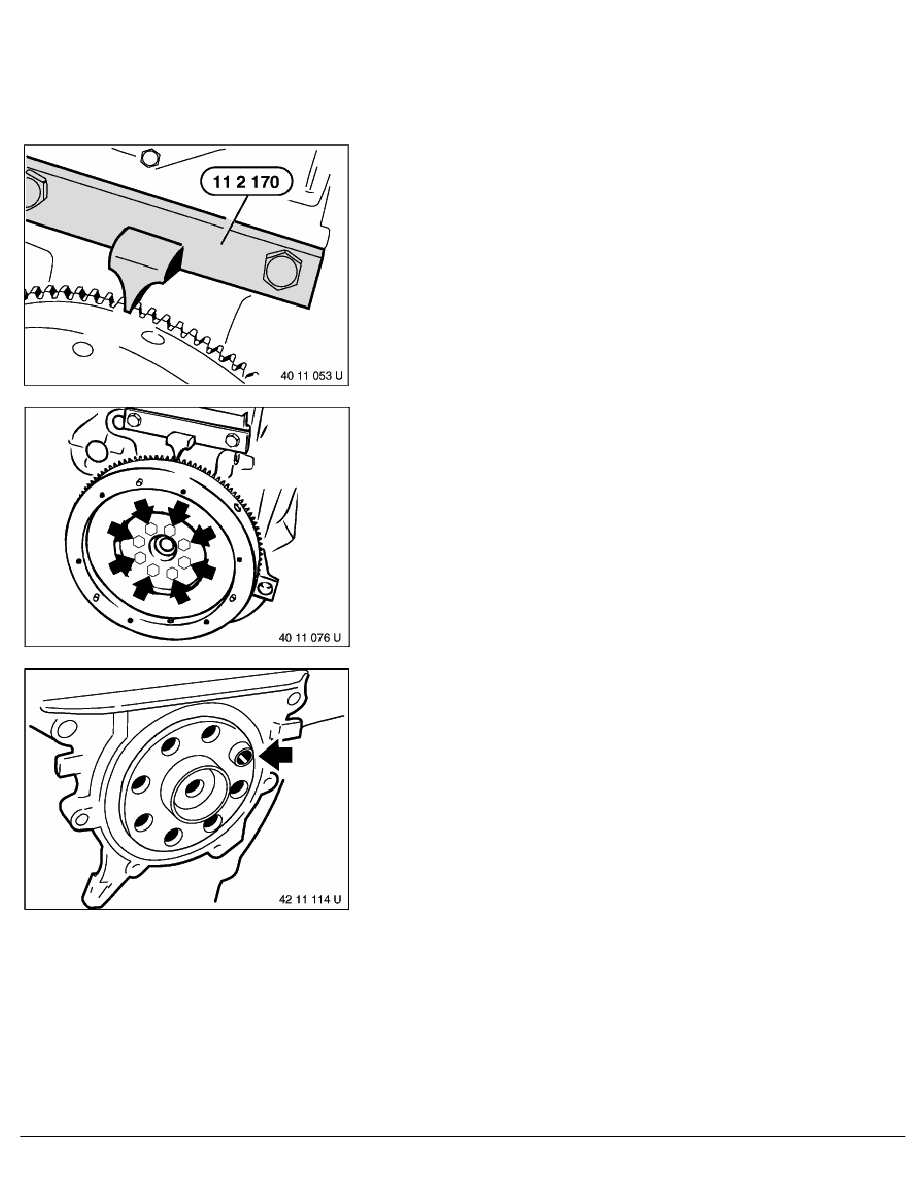

Hold flywheel with Special Tool 11 2 170.
Unfasten screws and remove flywheel.
Installation note:
Clean thread and install new micro-encapsulated screws.
Tightening torque,
refer to Technical Data 11 22 1AZ
Installation note:
Remember to fit hollow bush.
RA Removing and installing or replacing flywheel (M41)
