3 Series E36 318tds (M41) TOUR
11 28 010
Replacing alternator drive belt (M41)
Note:
If the drive belt are to be reused, mark the rotation direction
and reinstall the drive belt with the same rotation direction.
Removing fan wheel with fan coupling,
refer to 11 52 020

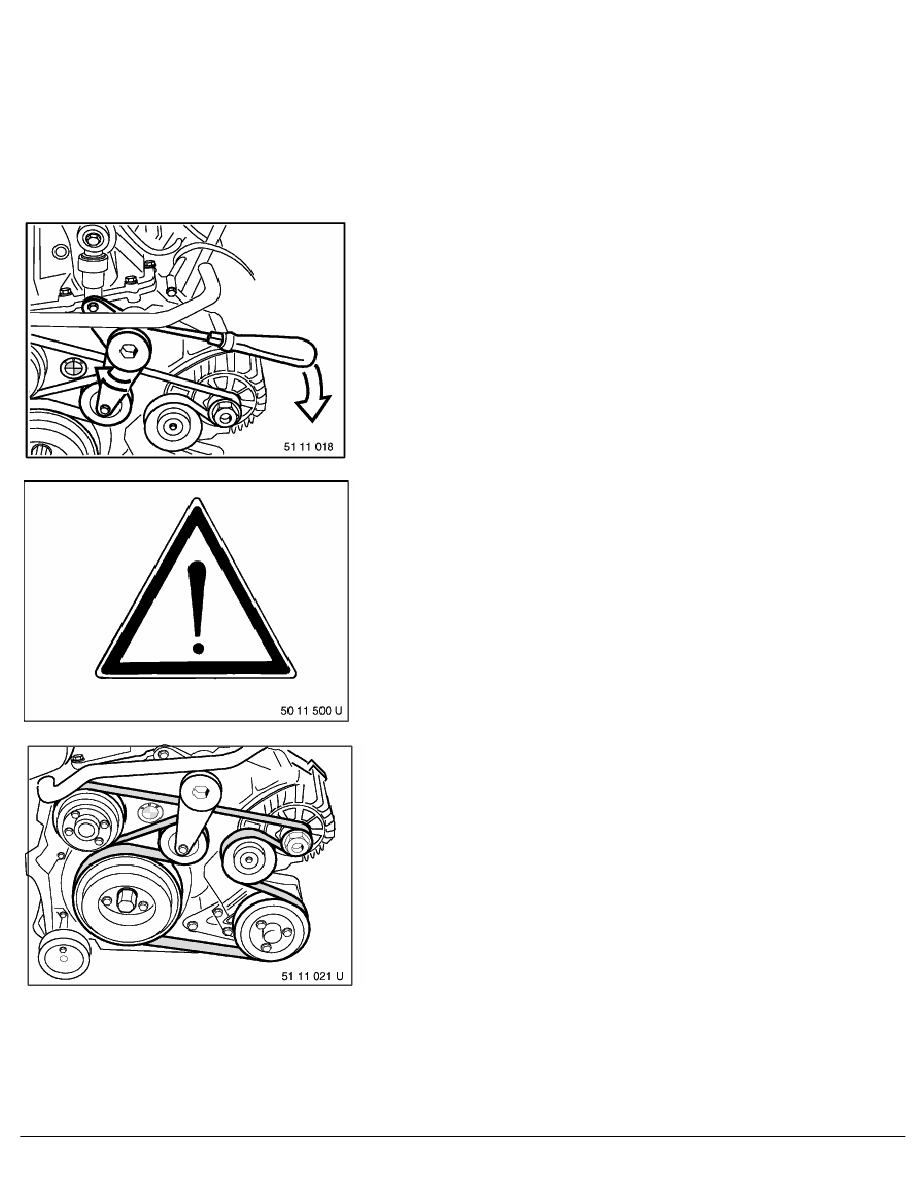

Using suitable lever (e.g. tough screwdriver), slacken automatic
belt tensioner and remove drive belt.
Check drive belt for coolant and oil residue and replace if
necessary.
Caution!
It is essential to replace drive belt if it comes into contact with
hydraulic fluid.
Layout of drive belt.
Make sure that drive belt is correctly seated in pulley grooves.
RA Replacing alternator drive belt (M41)
