3 Series E36 318tds (M41) TOUR
11 34 552
Removing and installing or removing all
valves (M41)
(cylinder head removed)
Preliminary work is described in section on dismantling and
assembling the cylinder head,
refer to 11 12 504
Replacing valve stem seals,
refer to 11 34 560
Remove valves from cylinder head.
If necessary, check valve guide for wear,
refer to 11 12 595
If necessary, ream the valve guide,
refer to 11 12 600
If necessary, rework the valve seat,
refer to 11 12 527

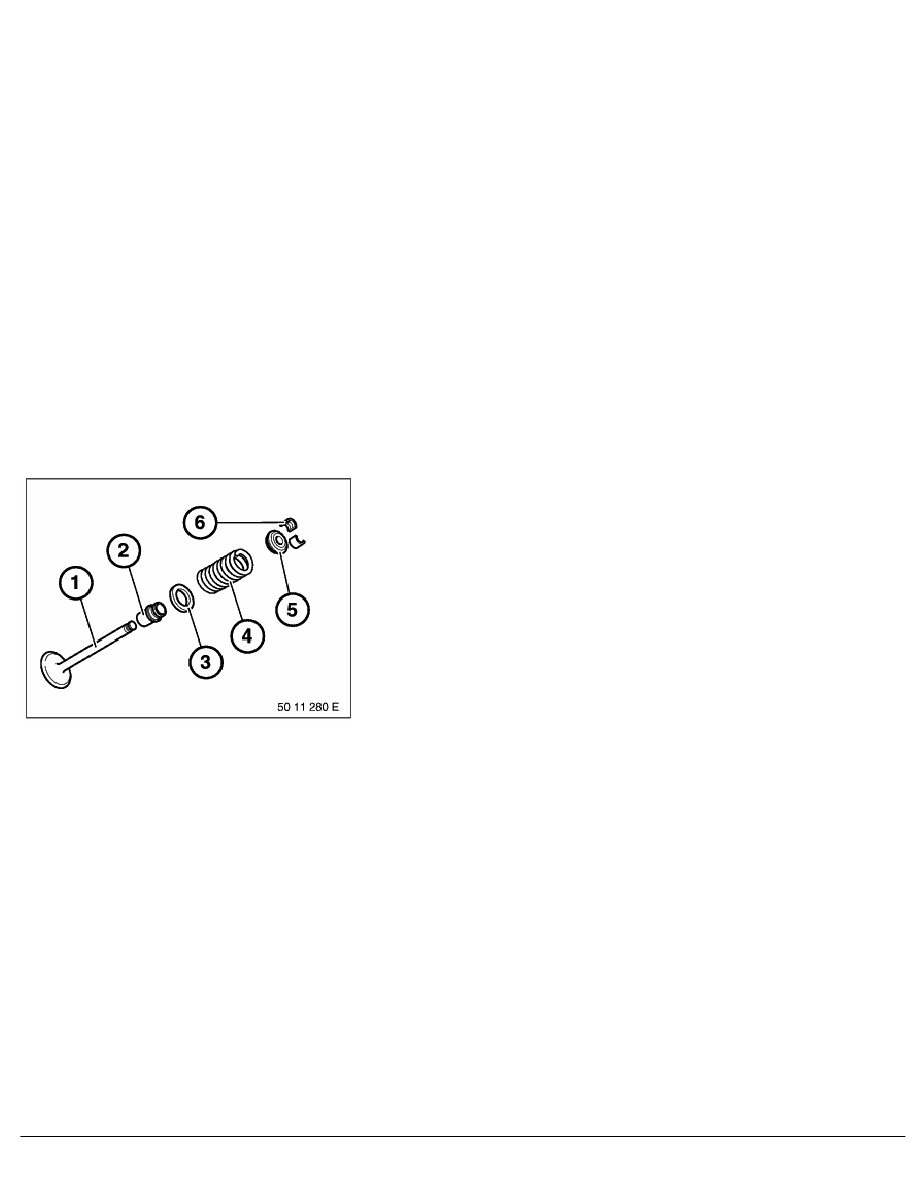

Installation sequence:
1.
Valve
2.
Valve-stem seal
3.
Lower plate spring
4.
Valve spring
5.
Upper plate spring
6.
Valve tapers
RA Removing and installing or removing all valves (M41)
