3 Series E36 318tds (M41) TOUR
11 41 000
Installing and removing or replacing oil sump
(M41)
Remove both timing chains,
refer to 11 31 052

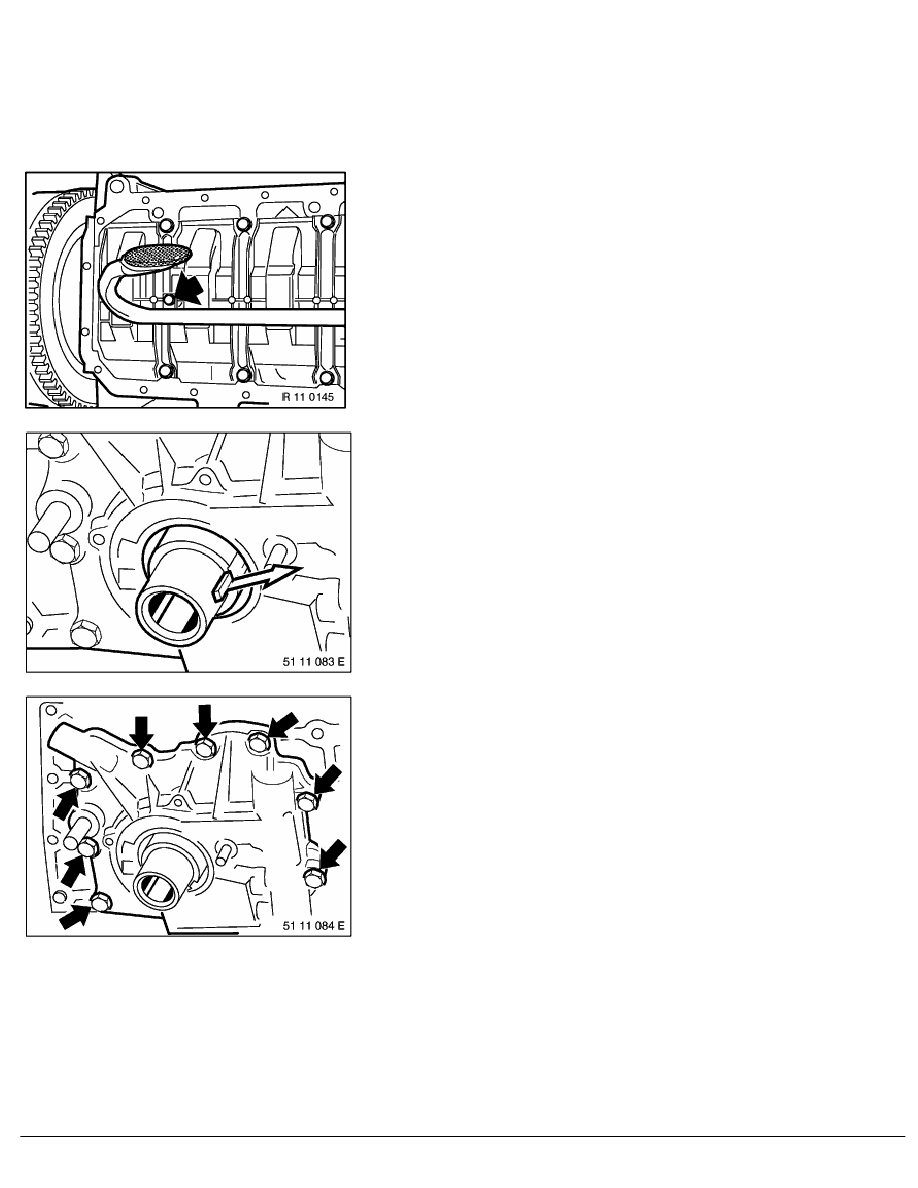

Unfasten support for intake snorkel.
Lift out woodruff key.
Unfasten oil-pump screws and lift off oil pump together with
suction pipe.
Installation:
Clean sealing face and replace seal.
