5 RA Replacing Rear Left Side Panel (touring)|Page 1703 > < 5 RA Replacing Rear Left Side Panel (touring)
Page 2
background image

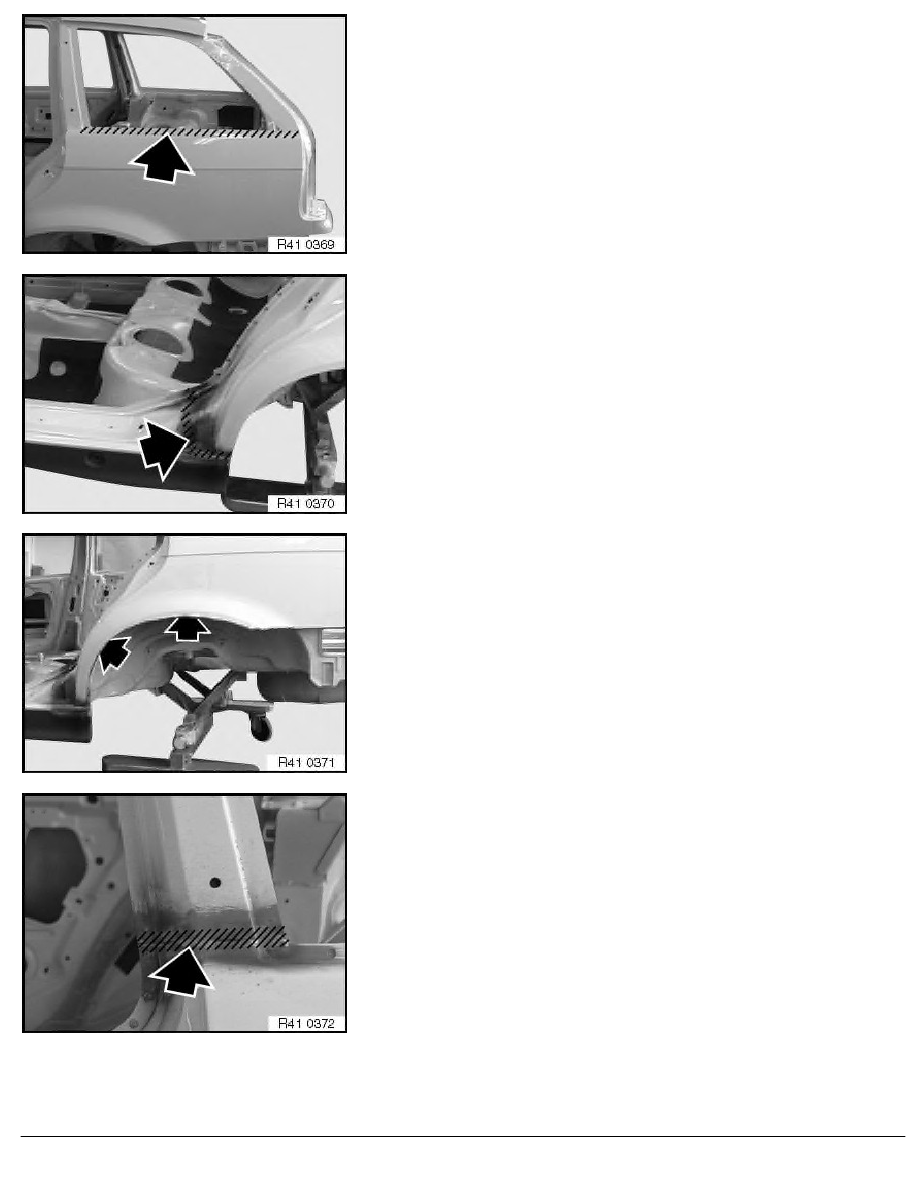

Expose and drill out spots in connecting points for side window.

Expose and open up connecting points between side
member/entrance.

Roughly cut open connecting points in wheel arch.

Expose and open up connecting points for C pillar.

RA  Replacing rear left side panel (touring)
