3 Series E36 320i (M50) COUPE

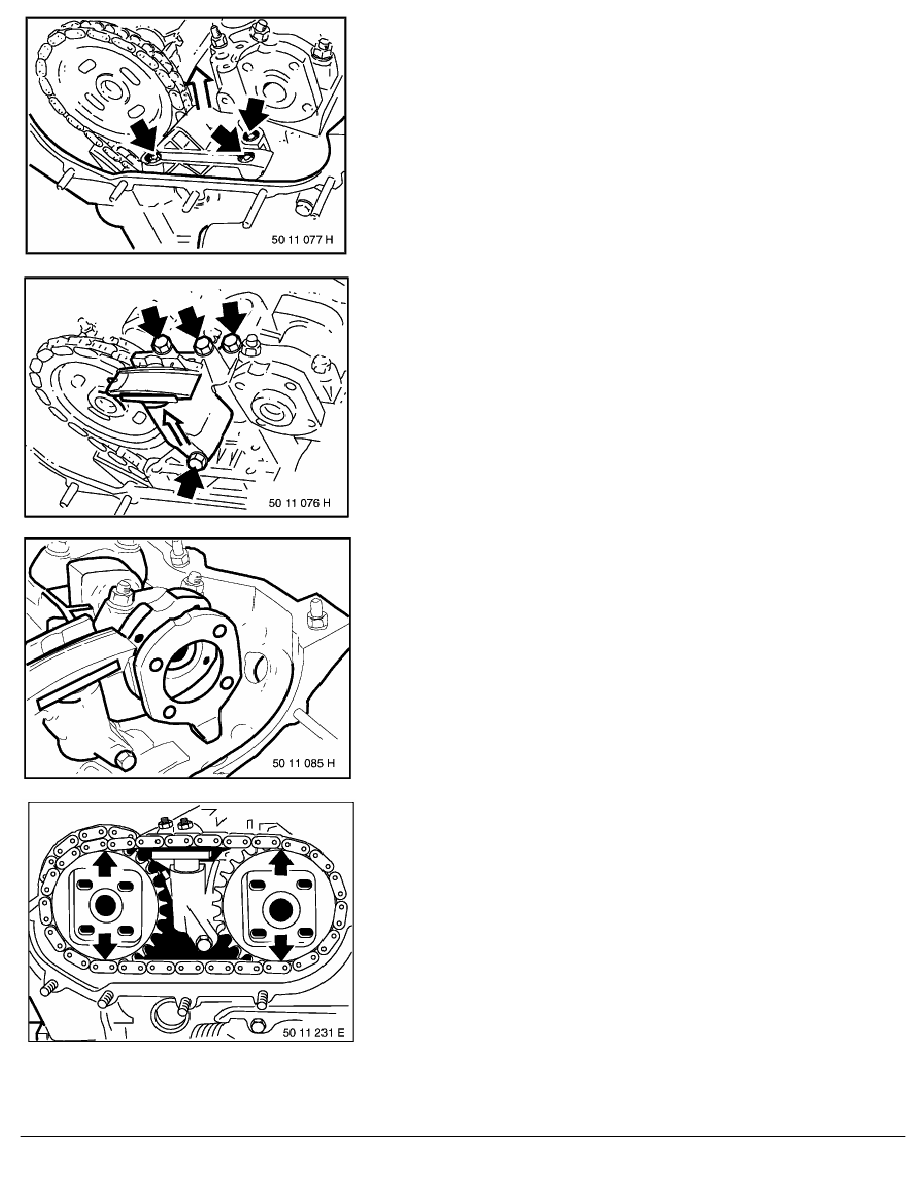

Install chain guide.
Install secondary chain tensioner.
Fit sensor gear for impulse sensor to intake camshaft.
Mount both sprockets together with chain.
Note:
Arrows on sprockets point upwards.
Align long bores centrally.
RA Replacing camshaft (M50) (intake or exhaust side as applicable)
