3 Series E36 320i (M50) SAL

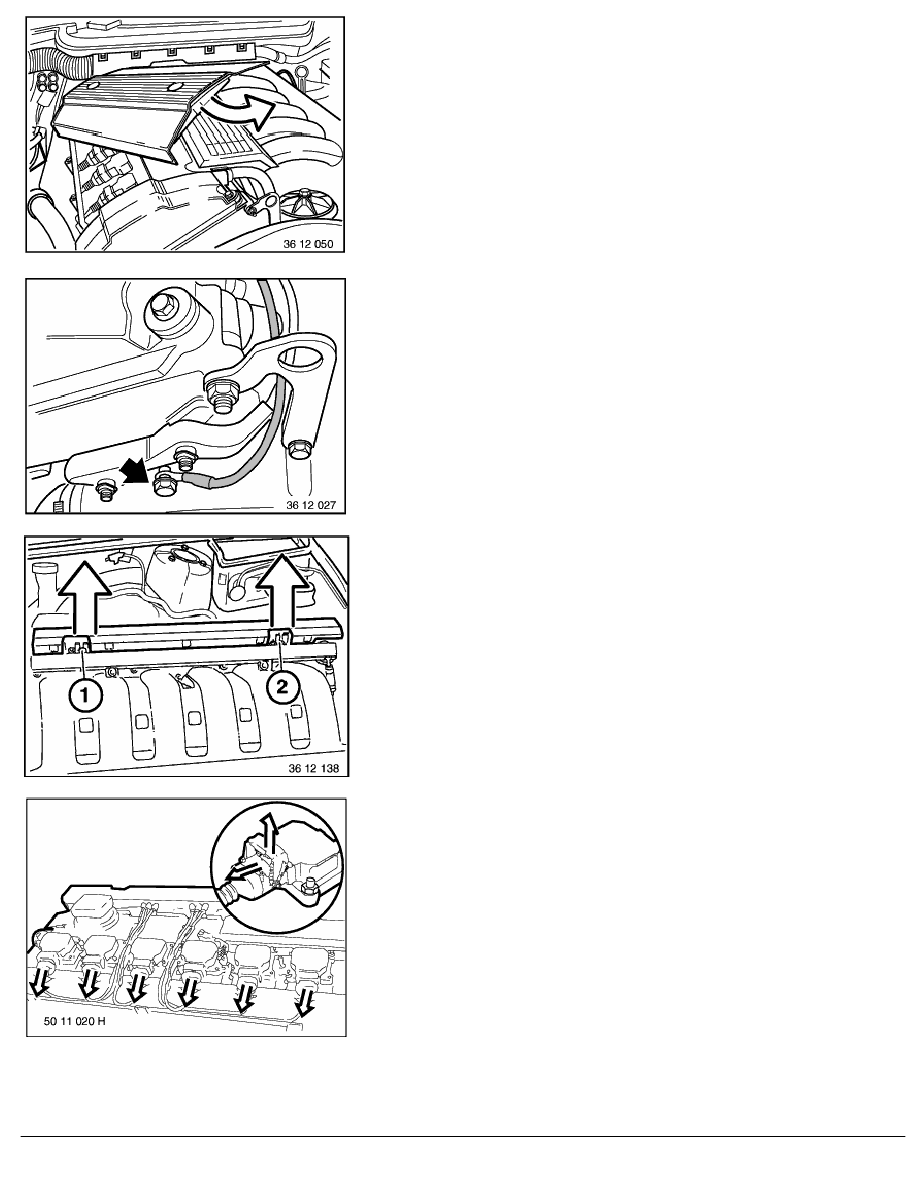

Remove covers of valve cover and intake manifold.
Disconnect earth wire of ignition coils.
Unscrew screws (1 and 2).
Pull off connecting strip.
Disconnect plug-in connections on ignition coils. Unclip wires in
valve cover.
Place cable channel to one side.
RA Removing and installing or replacing starter motor (M50,S50US, automatic transmi
