3 Series E36 320i (M52) CONVER

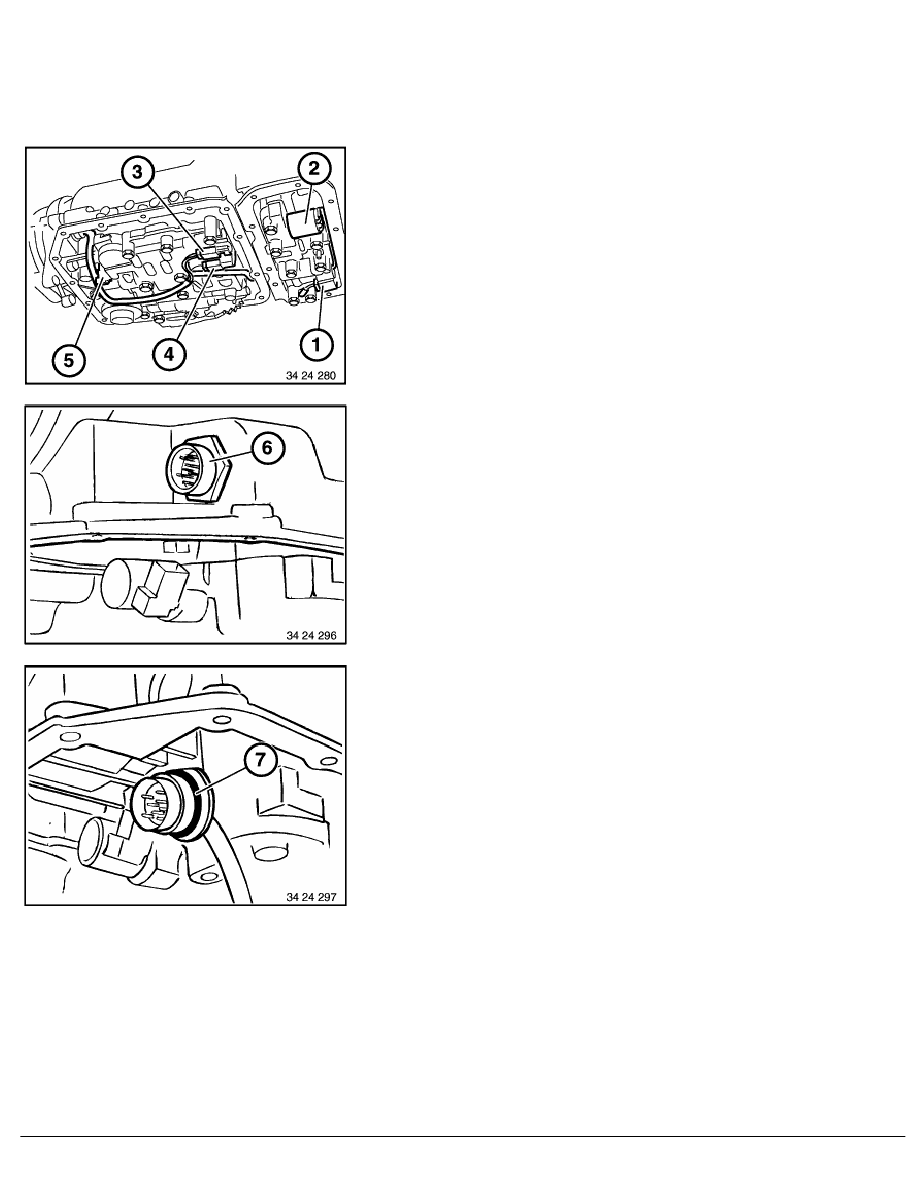

Plug type from 01.97:
Press locking clamp (1) away from transmission housing and
remove.
Press plug housing (2) into transmission housing.
Installation:
Note installation position of receptacle housing (1).
Installation:
Replace O-rings (1) and coat with automatic transmission
fluid.
Pull out wire harness through bore in transfer case.
RA Replacing wiring harness for automatic transmission (A4S 270R/ 310R)
