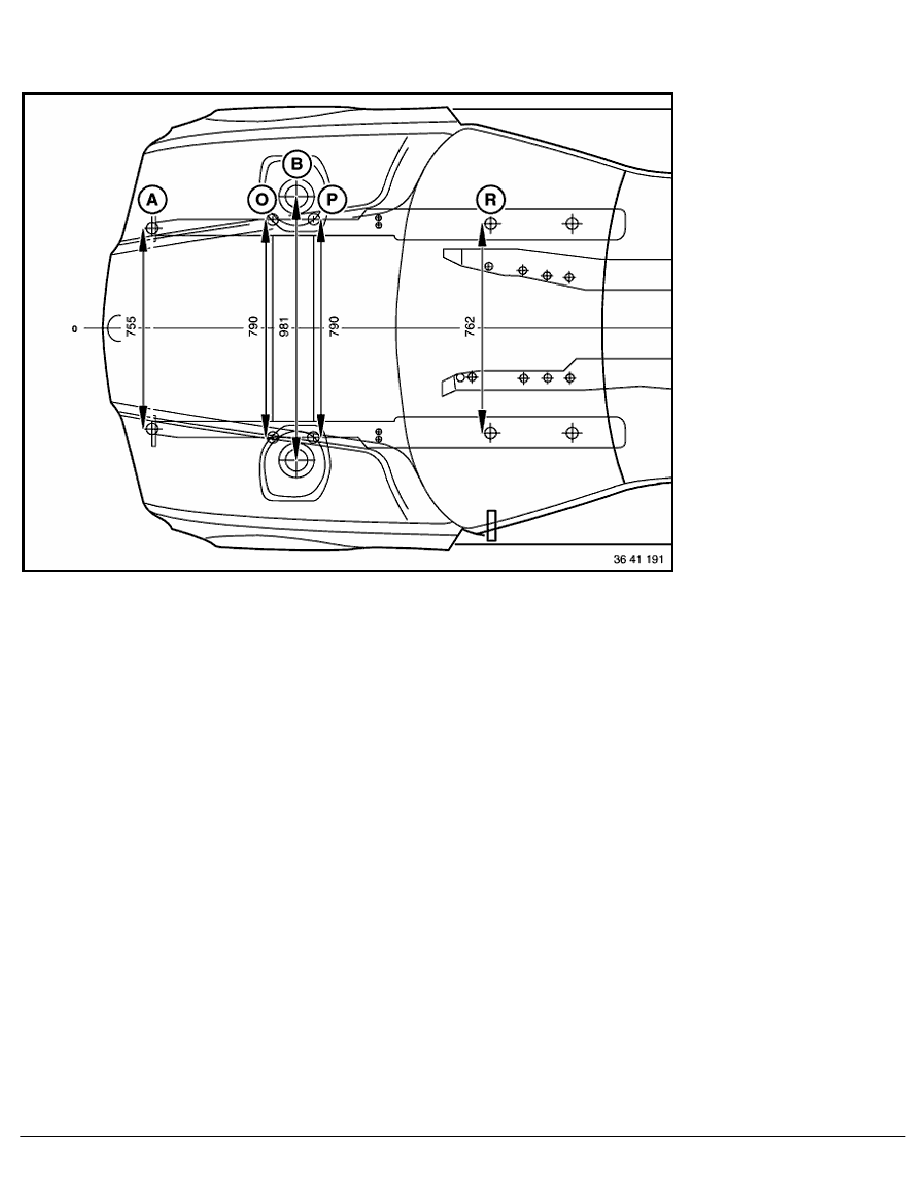

Frame alignment control dimensions of body plan view, front structure of BMW E 36 4-
door/2-door/touring/compact
A
Front impact absorber support, without attached
front trim panel
B
Front spring support
O
Front support point for front axle
P
Front axle mount, rear
R
Bore in engine support
Dimensions in mm,
Tolerance: dimension over 1000 mm
±
2.0 mm,
Tolerance: dimension up to 1000 mm
±
1.0 mm.
Note:
Only use the indicated values for a rough inspection.
Repairs can only be carried out correctly with the approved set of attachments and a straightening bench.
