3 Series E36 320i (M52) CONVER
51 16 360
Removing and installing right glove box
Note:
On convertible, the fan grills are not removed.

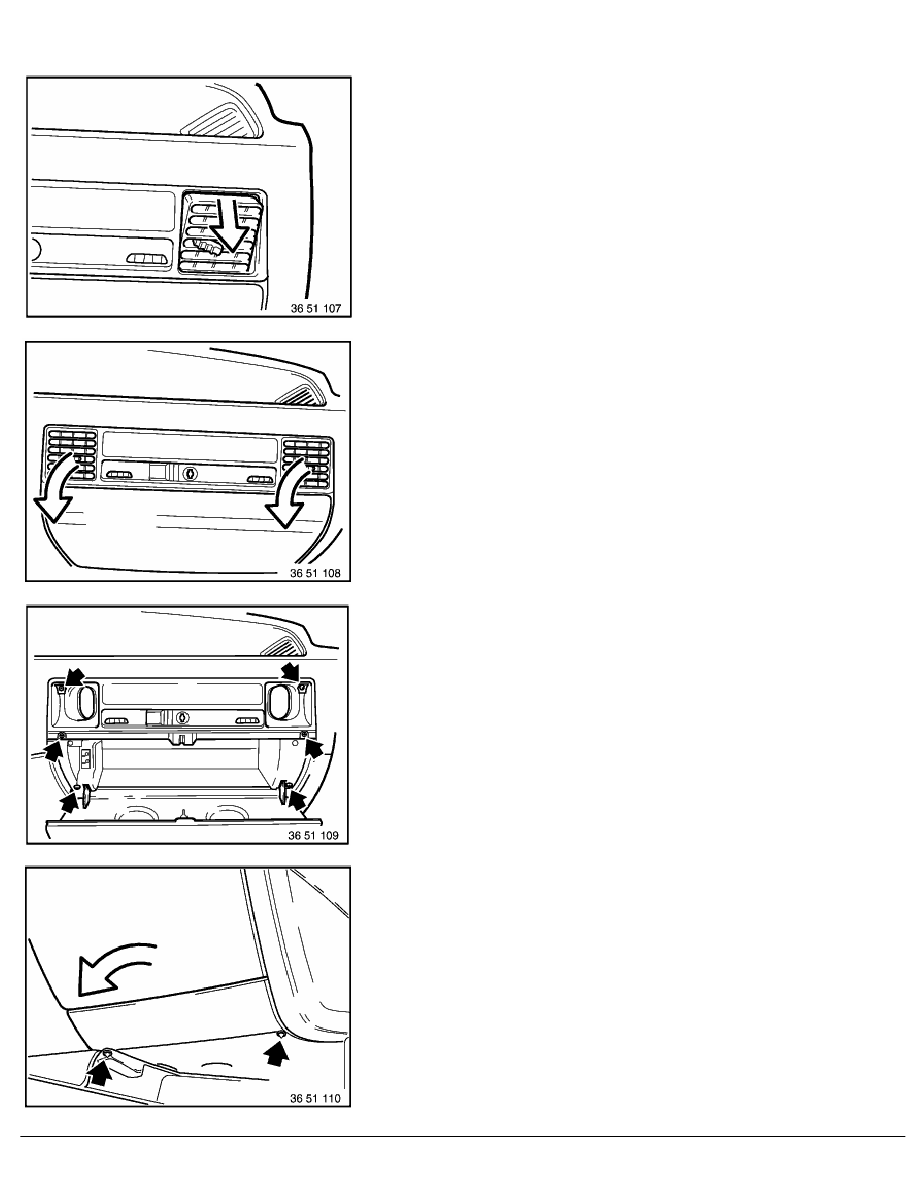

Disengage left and right air nozzles at top.
Position air nozzles straight and remove.
Unscrew bolts.
Disengage flashlight socket and push through towards rear.
Note:
On convertible, the upper screws are unfastened through the
fan grill.
Remove screws at bottom and pull glove box out.
RA Removing and installing right glove box
