3 Series E36 320i (M52) CONVER

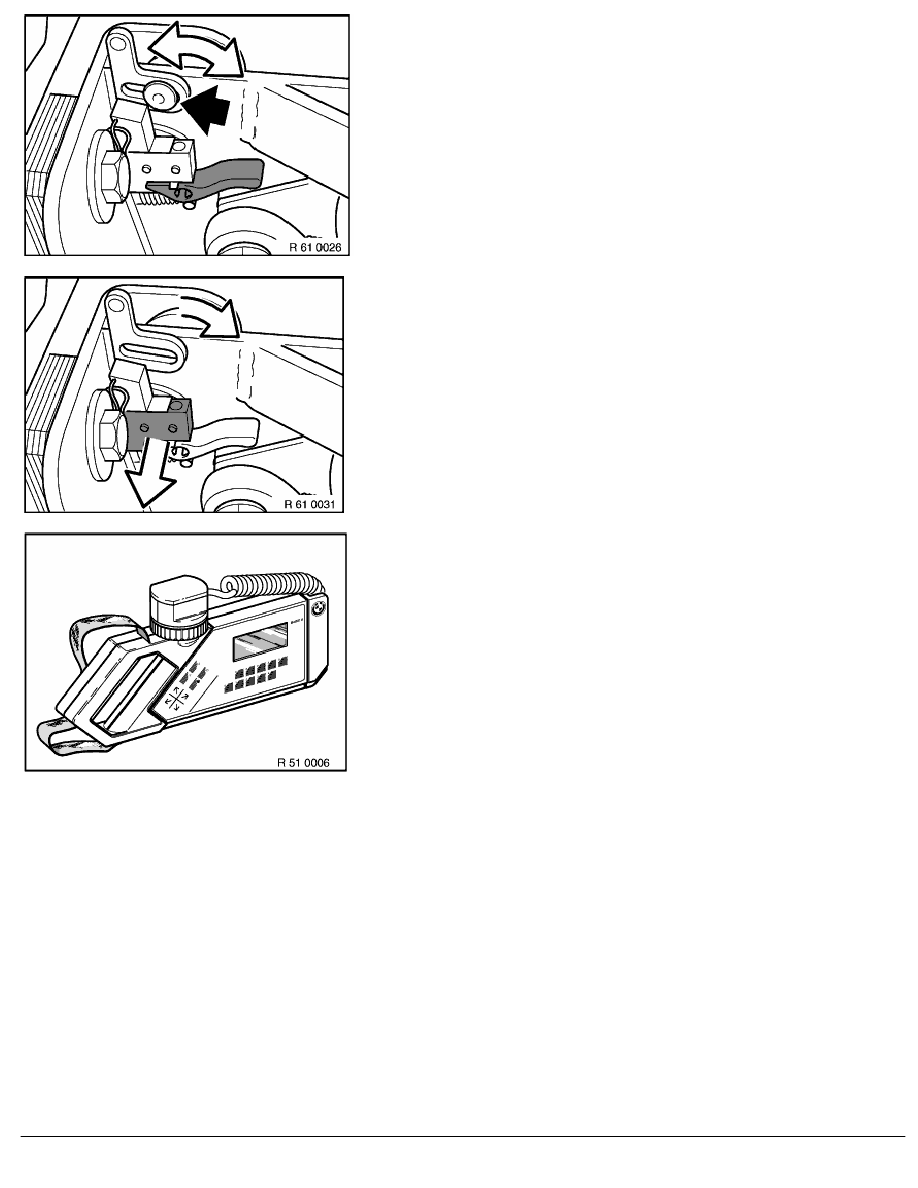

Release screw with special tool 54 3 160.
Disconnect connector.
Turn holder towards front of vehicle.
Remove switch.
Installation note:
After assembly, fault memory in Convertible Cover Module
must be cancelled and the cover must be reinitialized,
refer to 54 34 002 and Electrical Troubleshooting Manual 3
Series E36.
Check setting:
Disconnect convertible top drive units.
Place convertible top in convertible top compartment, press down
to limit position, then relieve pressure on convertible top.
Connect MoDiC.
Micro-switch "convertible top stowed"
Select switch 3.
Set micro-switch in such a way that micro-switch cuts in.
Micro-switch: tighten adjusting screws.
RA Micro-switch (soft top in convertible top compartment) - removing and installing
