3 Series E36 320i (M52) COUPE
24 22 705
Replace input clutch "F"
Disassemble and assemble/replace planetary gear set III,
refer to 24 22 637

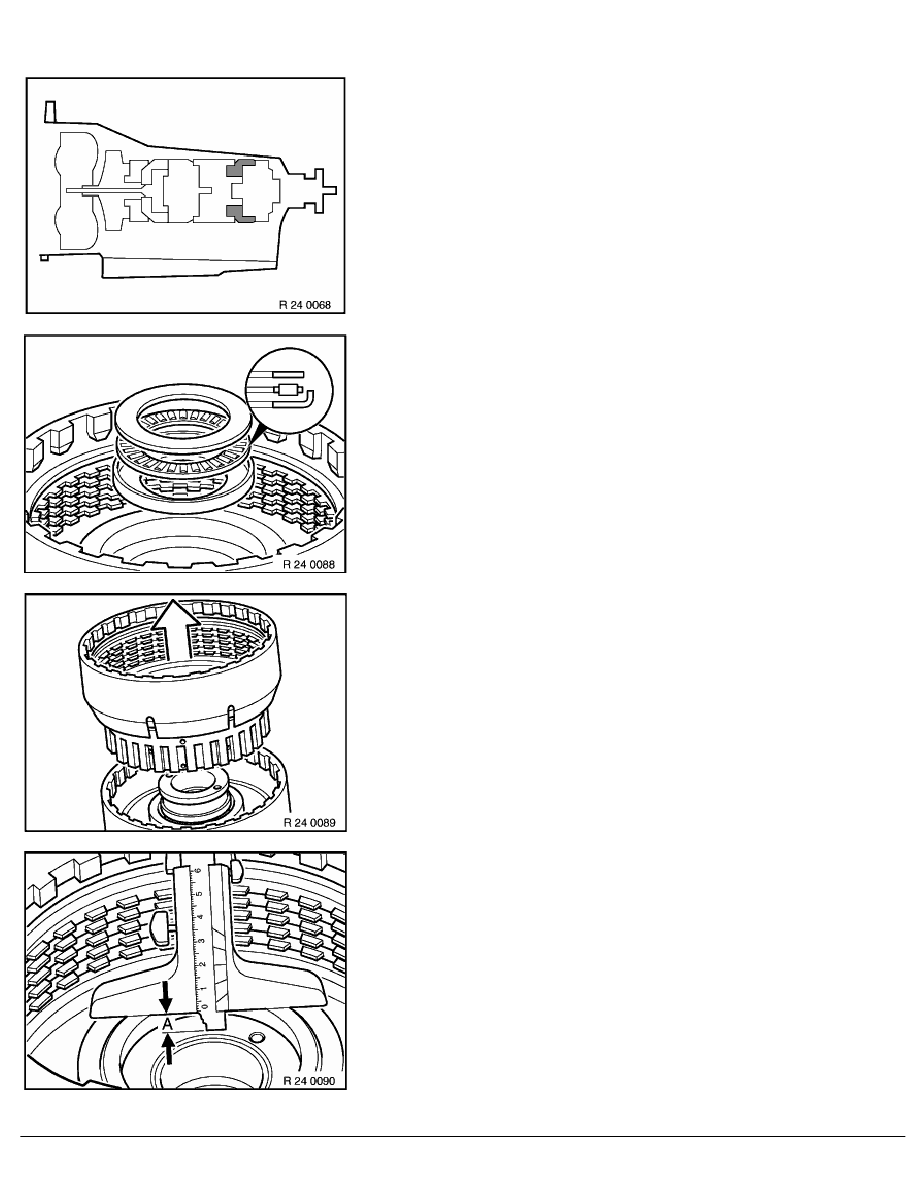

Arrangement of input clutch "F"
Lift off thrust bearing.
Lift off input clutch "F".
Installation:
Insert input clutch "F" in brake clutch "D/G" and move gently
to and fro until all discs locate in one another.
All discs are in mesh when dimension (A) is approx. 7.5 mm.
RA Replace input clutch "F"
