3 Series E36 325i (M50) CONVER
Mounting cylinder head on assembly (M50)

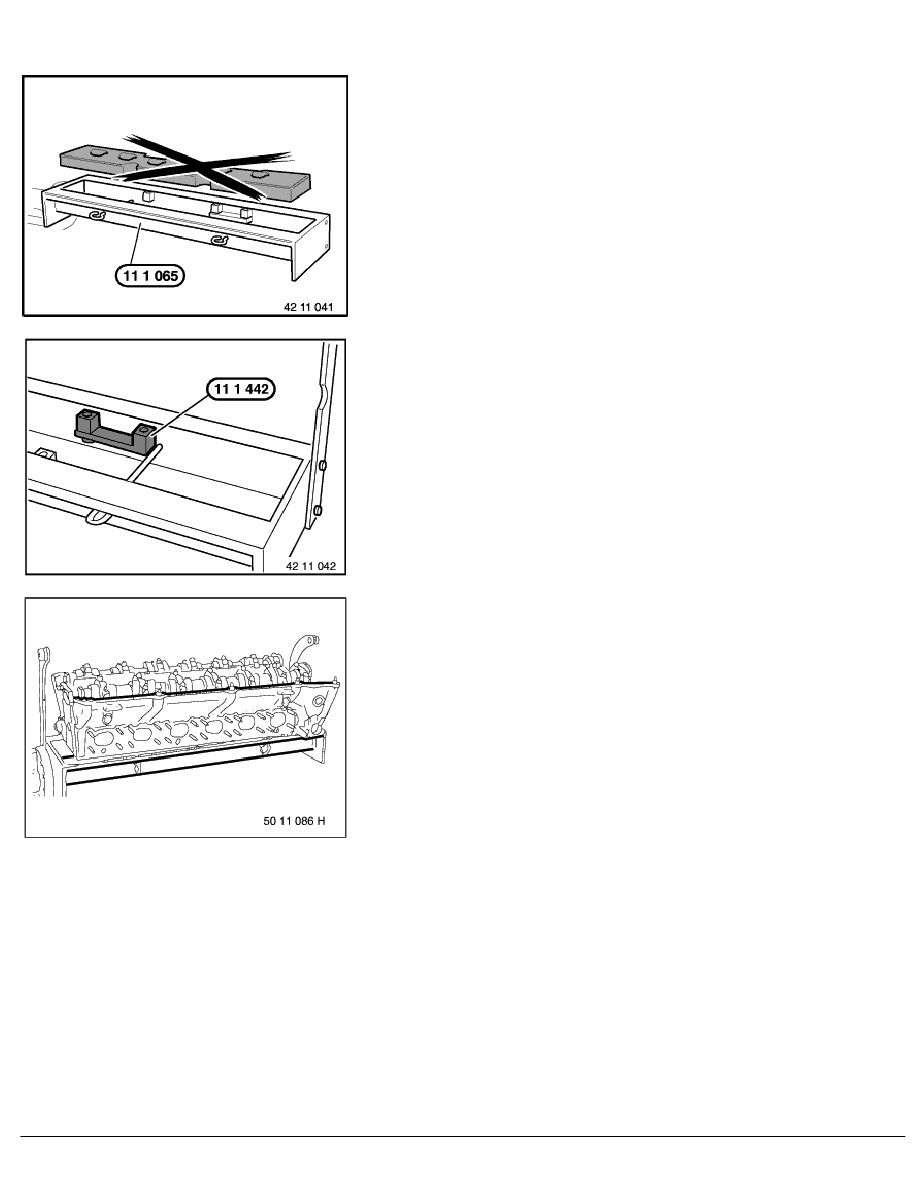

Fit special tool 11 1 065 (assembly fixture) to special tool
00 1 490 (assembly frame).
Do not install special tool 11 0 180 (support board).
Note:
If assembly fixtures have already been supplied, screw on
special tool 11 1 442 (additional holder).
Mount cylinder head on assembly fixture with two cylinder-head
bolts.
RA Mounting cylinder head on assembly (M50)
