3 Series E36 325i (M50) CONVER
Removing cylinder head cover (M50 VANOS)

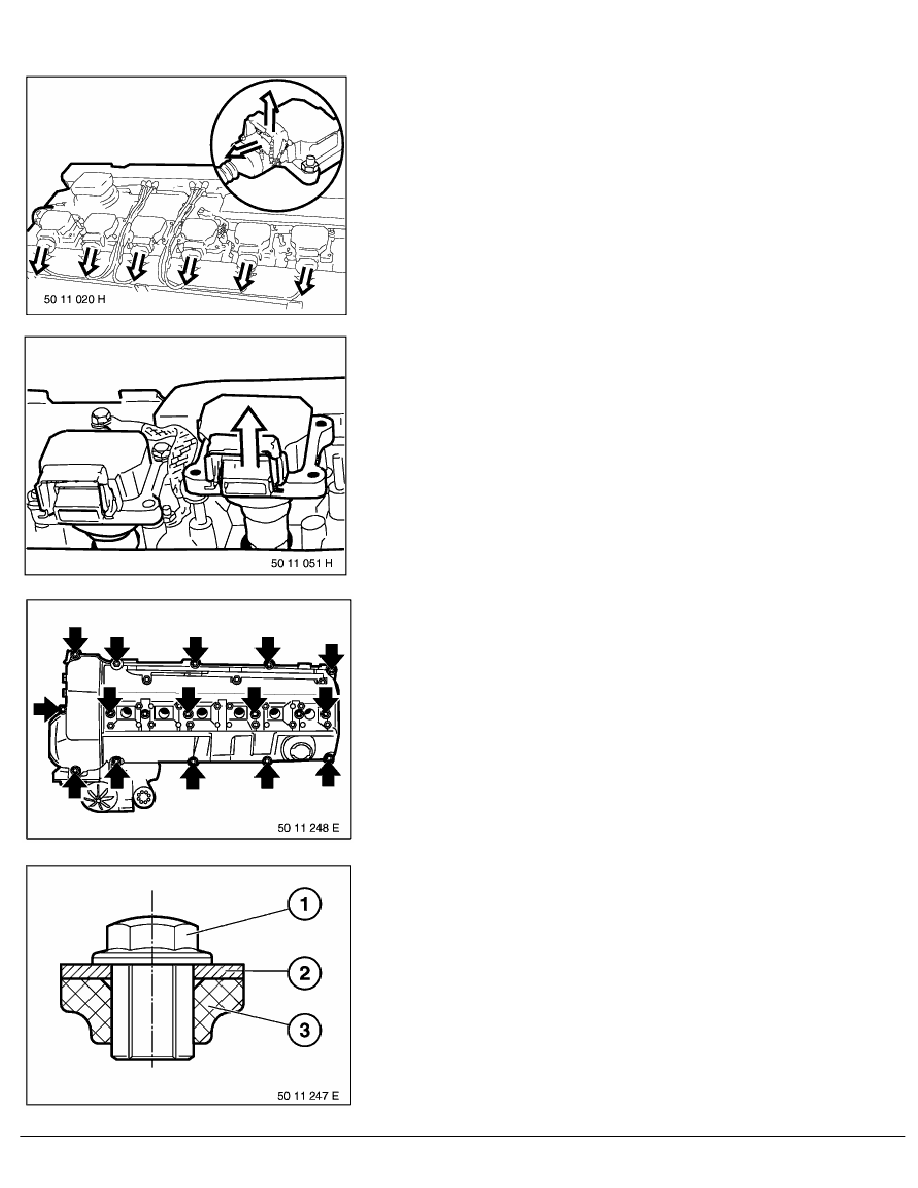

If applicable, pull connectors off ignition coils.
Unscrew nuts. Remove ignition coils.
Installation:
Check for earth strap of ignition coils at cylinders 3 and 6.

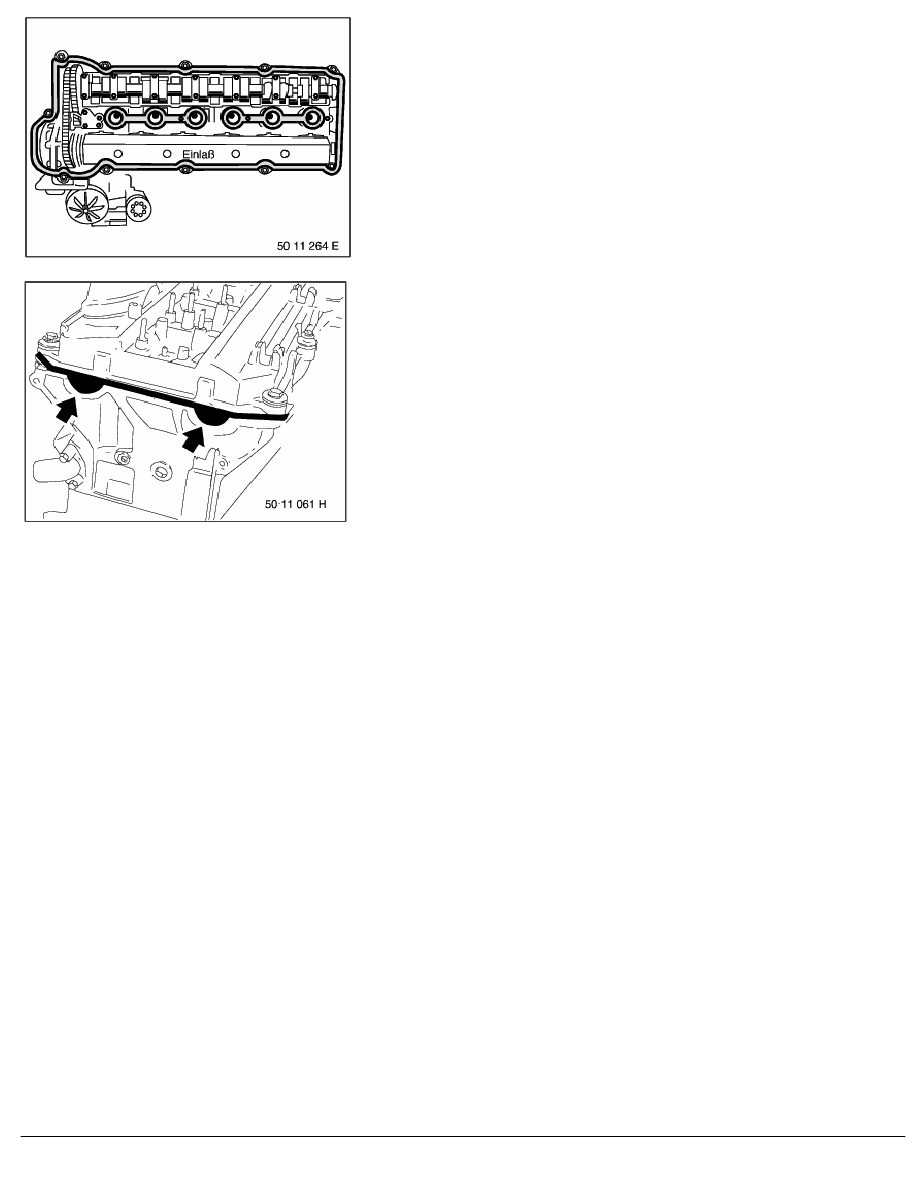

Unscrew cylinder-head cover.
Note:
Cylinder-head cover is separated from cylinder head by
rubber mounts and seals to prevent oscillation.
Check arrangement of cover installation.
1.
Cover nut
2.
Washer
3.
Rubber mount
