3 Series E36 325i (M50) CONVER
12 12 011

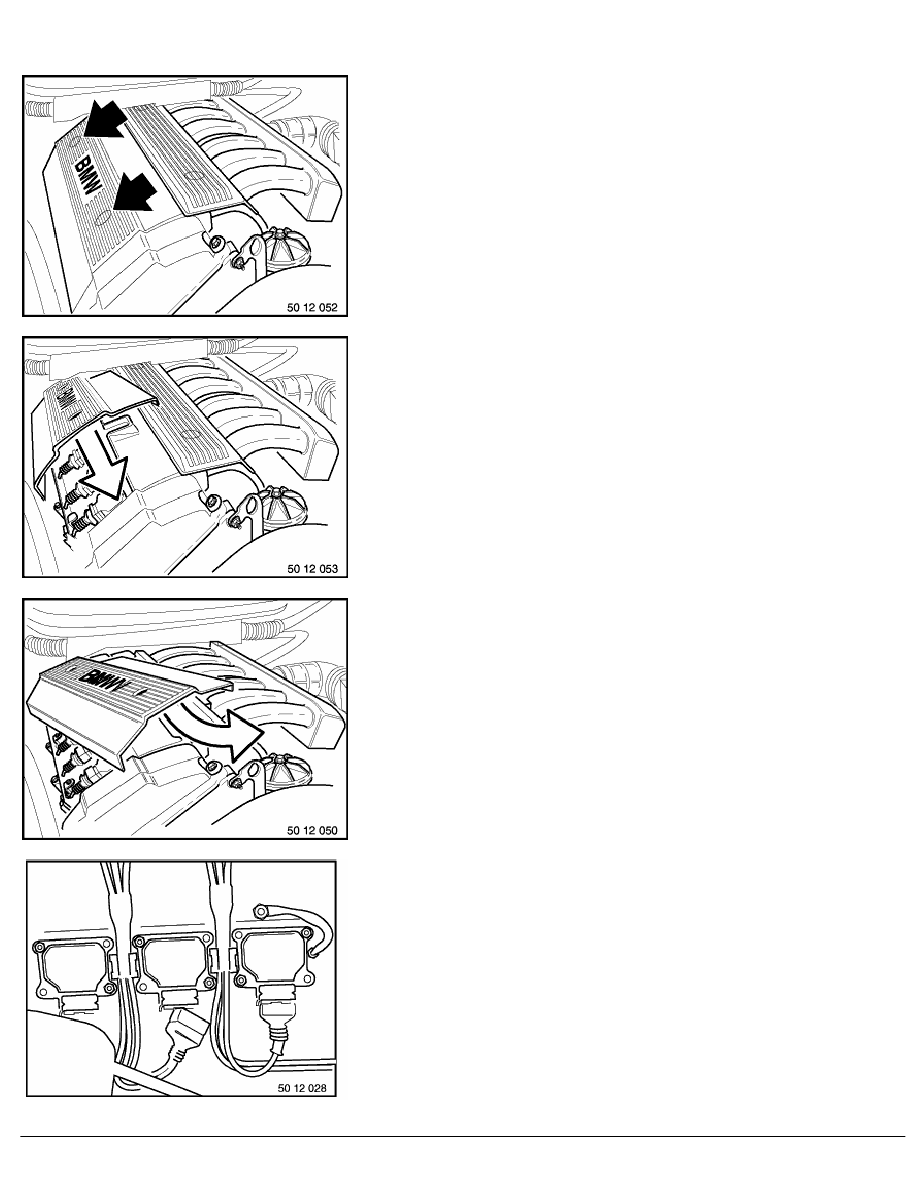

Replacing spark plugs (M50)
Release caps of ignition coil cover.
Unscrew bolts.
Remove cover from oil filler neck.
Lift ignition coil cover and withdraw from front.
Note:
If it is not possible to remove the ignition coil cover, remove
the injector valve cover.
Refer to other procedures below.
Release caps of injection valve cover.
Unscrew bolts.
Take cover off fuel injector rail.
Remove ignition coil cover - pull to one side.
Disconnect connectors.
Unscrew ignition coils.
RA Replacing spark plugs (M50)
BMW AG - TIS
08.02.2013 07:08
Issue status (12/2007) Valid only until next DVD is issued
