3 Series E36 325i (M50) CONVER

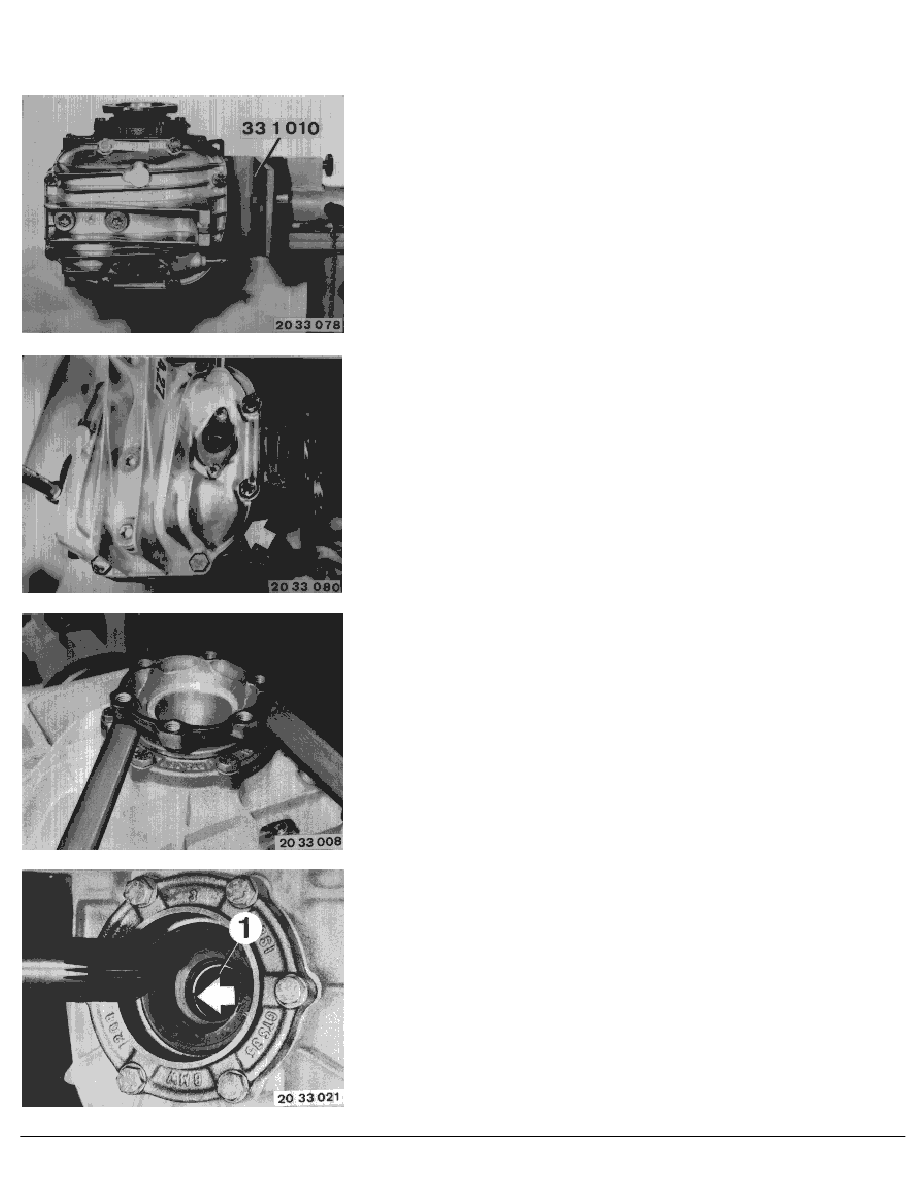

Example:
Second bearing cover not tightened down (screws tightened
evenly).
Friction torque, refer to Technical Data
Gap measured with blade
0.20 mm
Used shim
1.40 mm
Install shim of thickness
1.60 mm
Measure again.
Remove differential case.
Arrange side covers and shims of determined thickness - don't mix
them up.
RA Replacing complete locking differential (Type M) - final drive removed -
