3 Series E36 325i (M50) CONVER
51 71 ...
Removing and installing or replacing center
trim fro rear window fan (convertible)
Open soft top compartment cover.

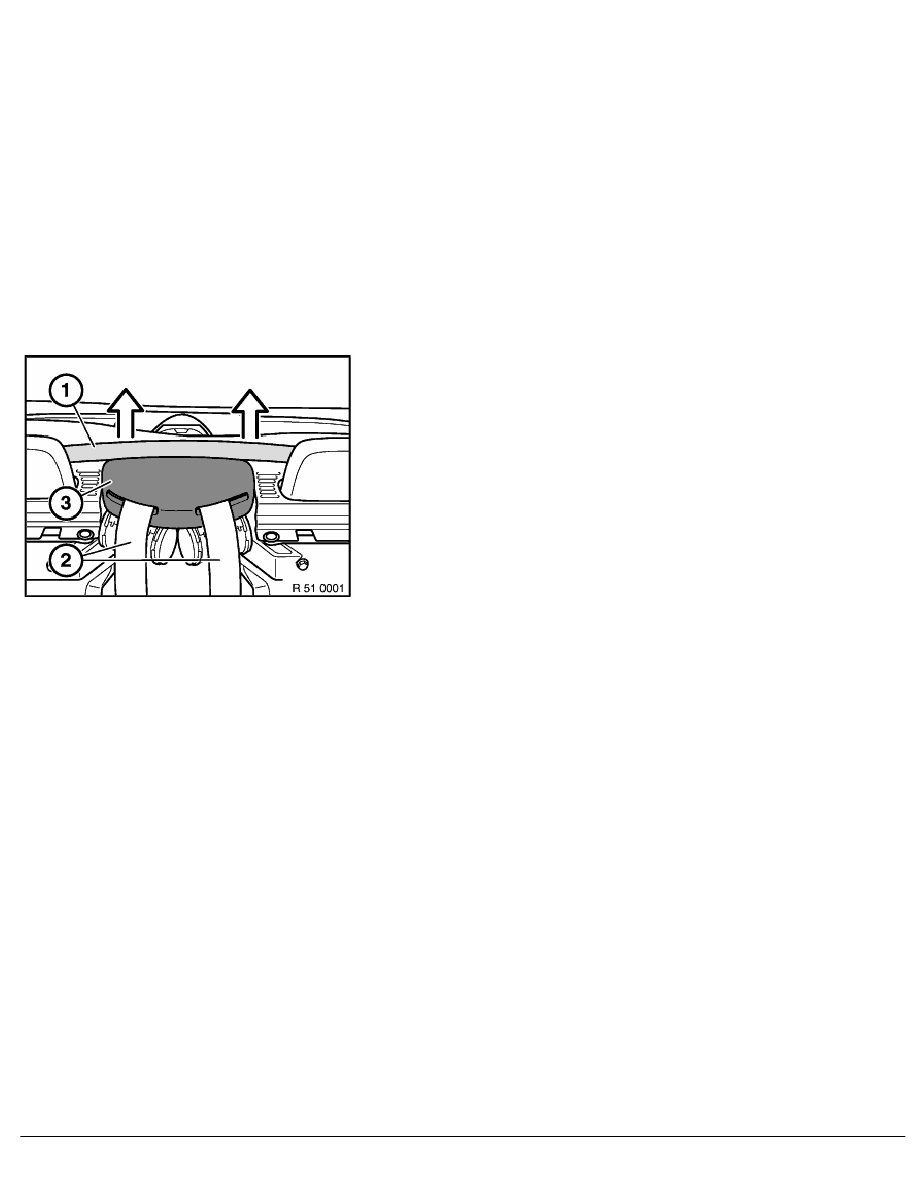

Partially remove protective edge trim (1).
Remove webbing (2), unclip trim (3) and lift out upwards.
Installation:
Soak clips for a period in water.
If necessary, replace damaged clips.
