3 Series E36 325i (M50) SAL

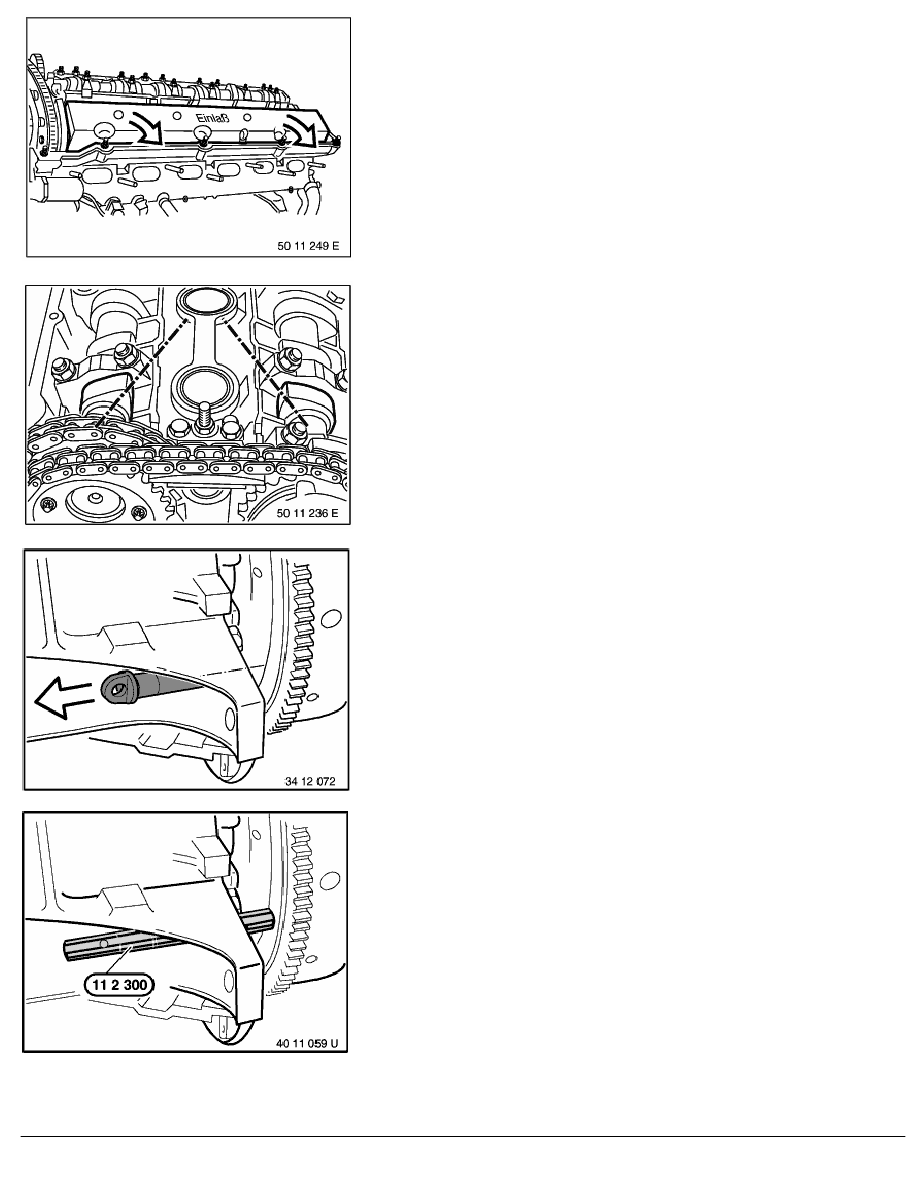

Pull off plastic cover for intake camshaft.
Rotate engine engine-wise until cam tips on intake and exhaust
camshafts on 1st cylinder face one another.
Pull dust guard out of the special tool bore.
Secure crankshaft in TDC position with special tool 11 2 300.
Caution!
Removing special tool 11 2 300 before starting engine.
RA Removing and installing or replacing VANOS adjustment unit (M50)
