3 Series E36 325is (M50) COUPE

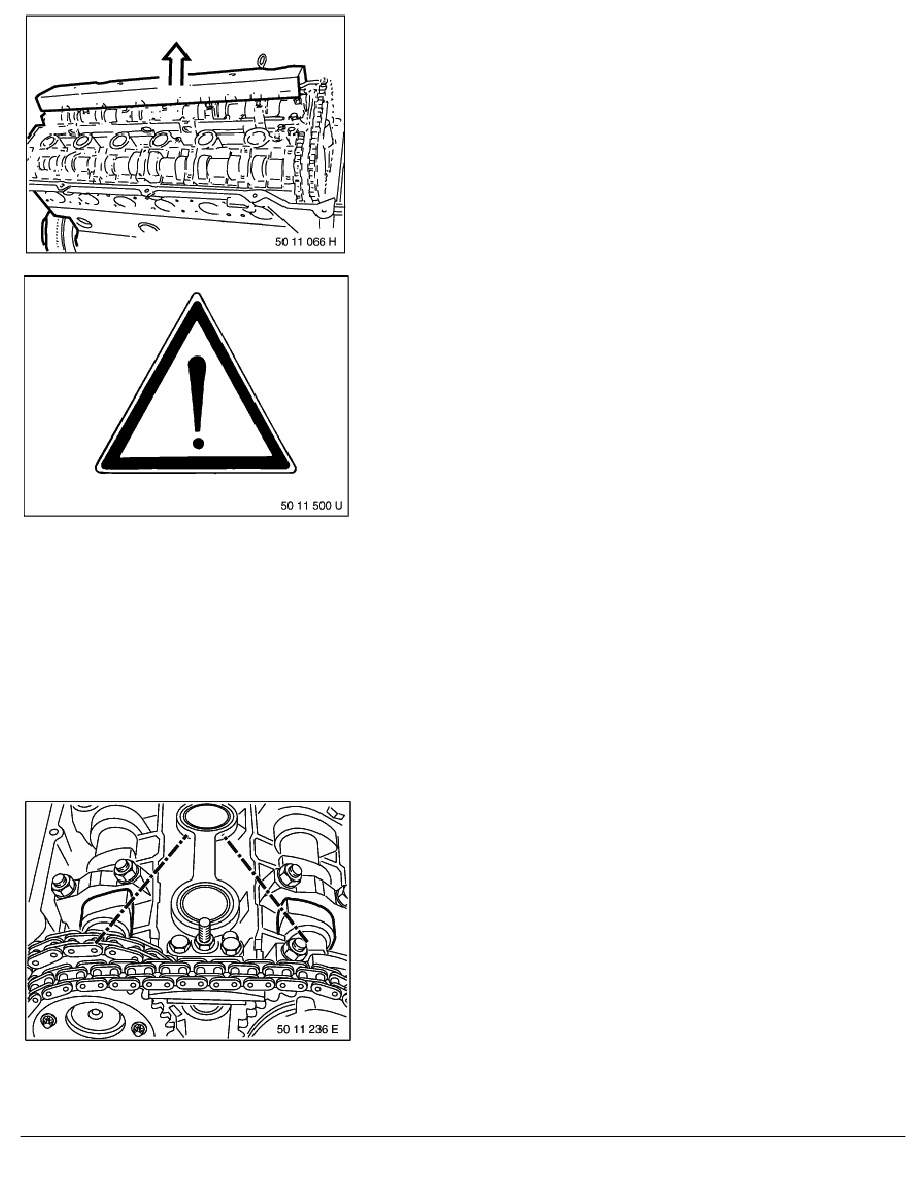

Pull off cover.
Remove camshaft
Caution!
Incorrect removal/installation without help of fixture could
damage or break the camshaft. Valves could also be bent
through contact with the piston crowns. Always note
installation instructions and use specified special tools,
procedures, and sequences.
Removal
The removal of the camshaft is described separately from the
installation. Assembly sequence for removal and installation is
different.
Rotate engine in rotation direction, until cam tips of intake and
exhaust camshafts point to each other at 1st cylinder.
Arrows on sprockets face up.
RA Replacing camshaft (M50) (intake or exhaust side as applicable)
