3 Series E36 325is (M50) COUPE

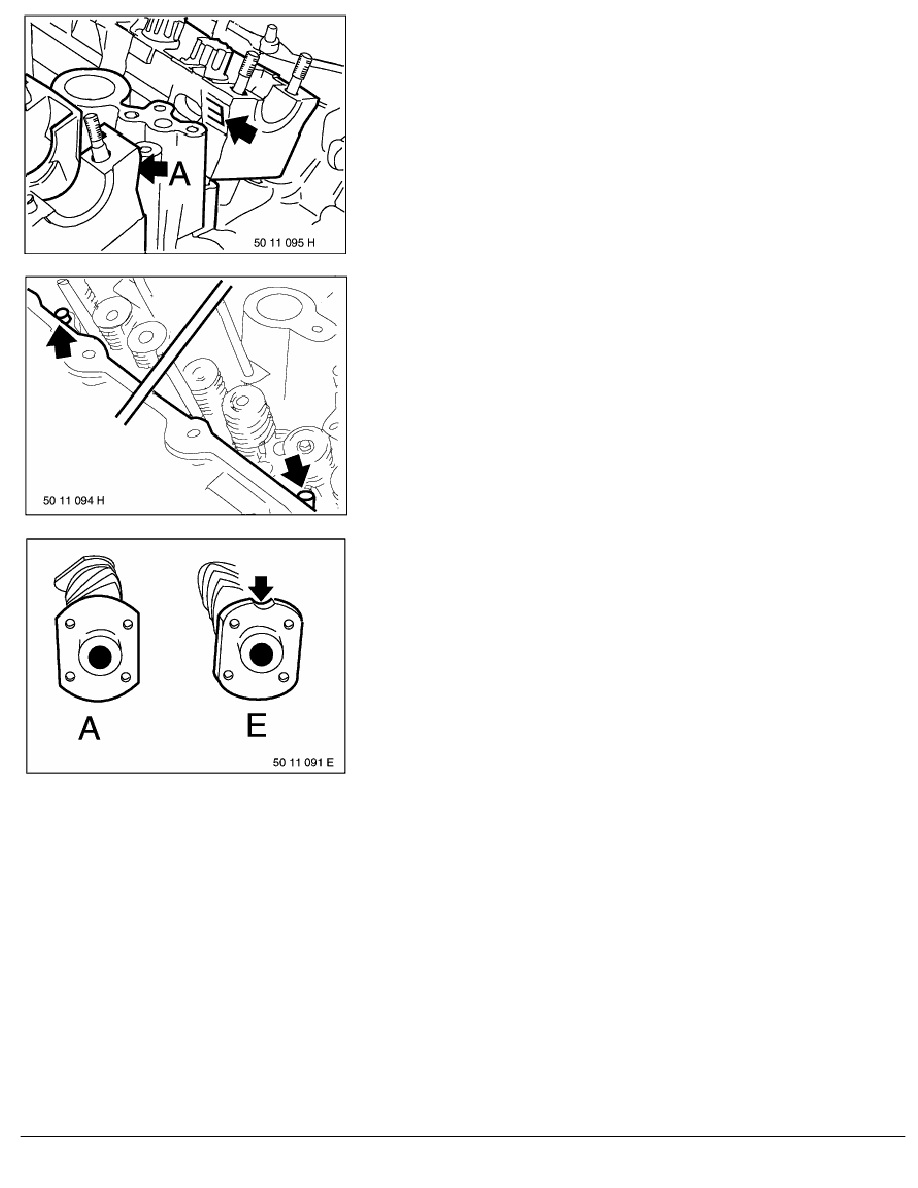

Note:
The bearing strips are marked with "A" for exhaust side and
"E" for intake side.
Check centering sleeves on studs of bearings 2 and 7.
Install bearing strips.
Note:
Identification of camshafts through difference on flange for
sprockets:
E = Intake camshaft
A = Exhaust camshaft
Installation
The installation of the camshaft is described separately from the
removal. Assembly sequence for removal and installation is
different.
RA Replacing camshaft (M50) (intake or exhaust side as applicable)
