3 Series E36 328i (M52) COUPE
11 21 531
Replacing all main crankshaft bearing shells
(M52 / S52 / M52TU / M54 / M56)
Special tools required:
•
00 2 590
•
00 9 120
•
11 2 110
(engine dismantled)
M52 B20 / M52TU B20
M54 M22

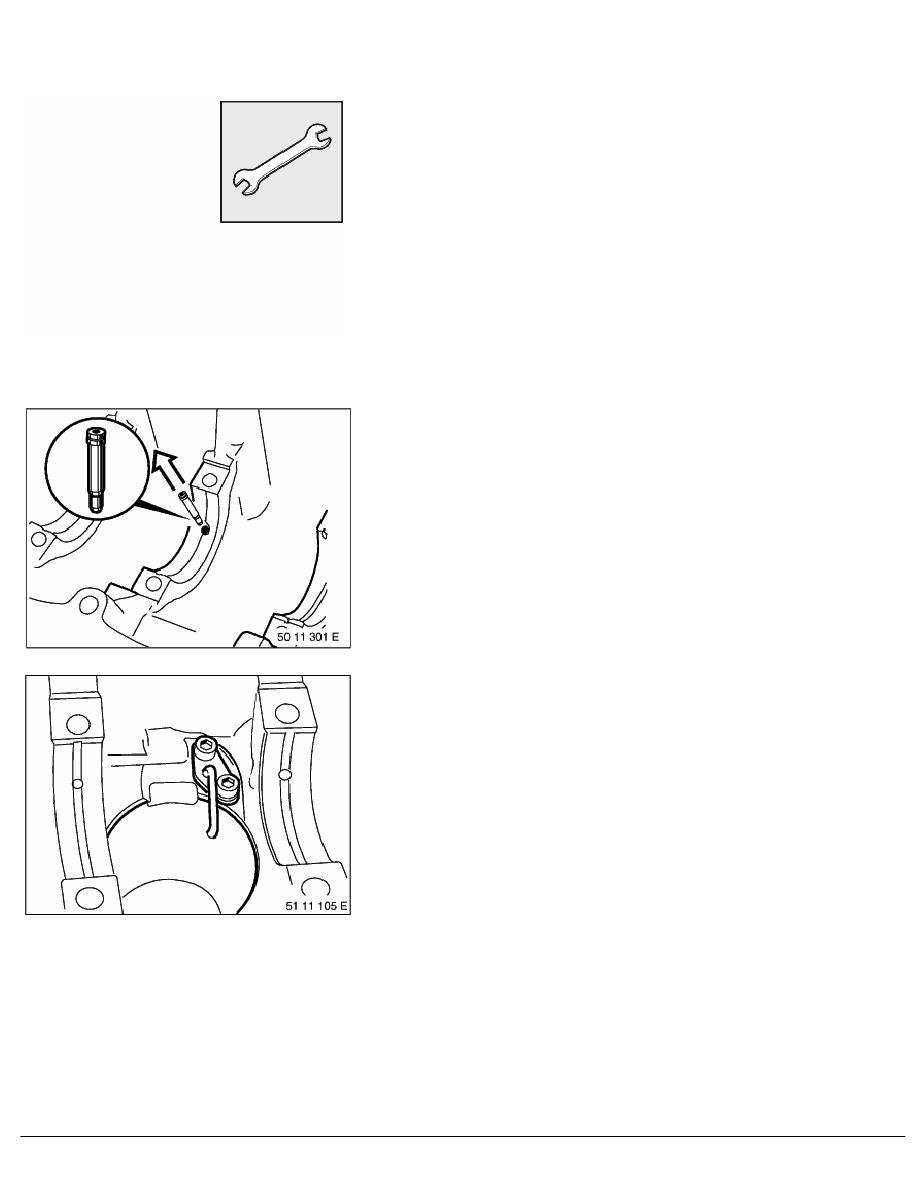

Note:
Injection nozzles for cooling the pistons are installed in the
bores of bearing seats 2 to 7.
M52 B25 / B28
S52
M52TU B25 / B28
M54 B25 / B30
M56
Note:
Injection nozzles for cooling the pistons are installed on the
underside of the cylinder between the bearing seats.
Installation:
Screw threads are coated with screw securing adhesive (Loctite).
Replace screws.
RA Replacing all main crankshaft bearing shells (M52 / S52 / M52TU / M54 / M56)
