3 Series E36 328i (M52) COUPE

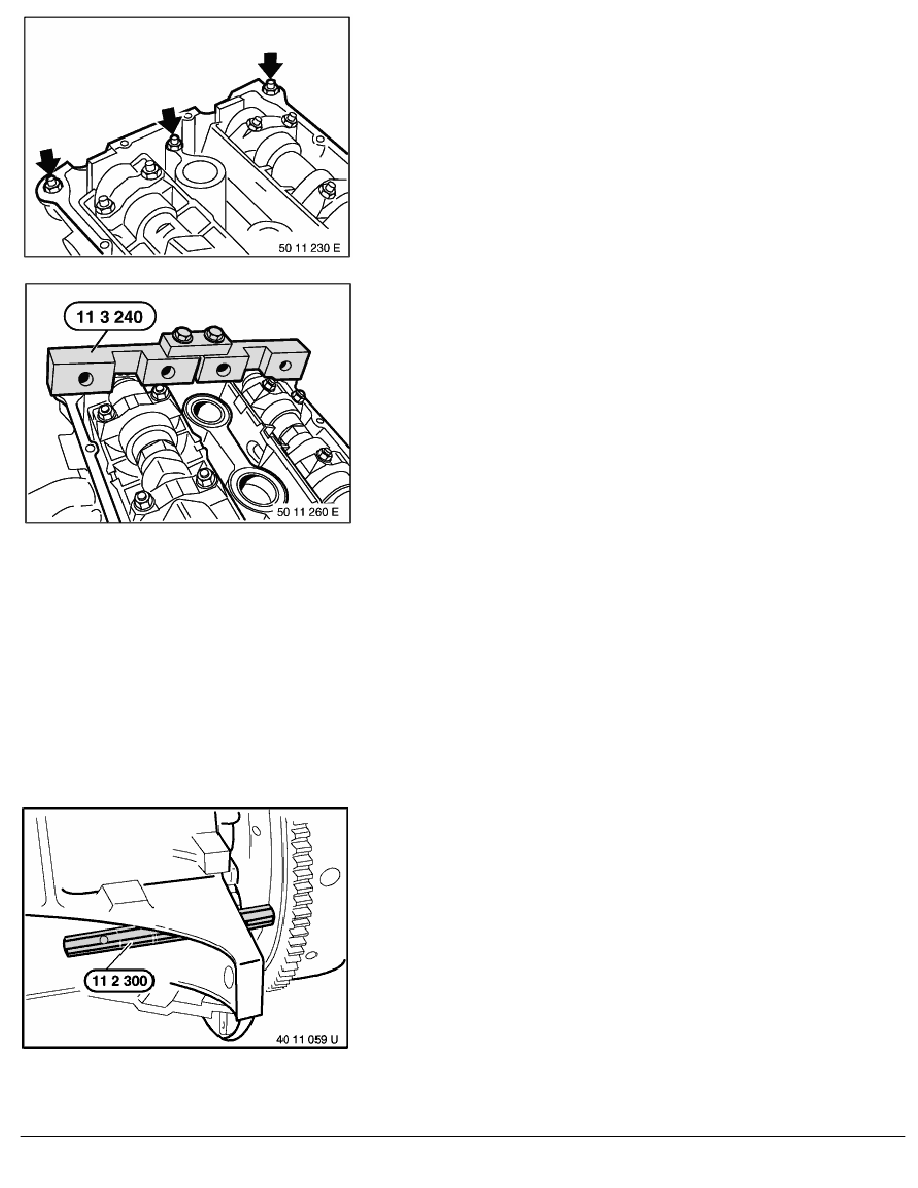

Unscrew studs.
Fit special tool 11 3 240 on 6th cylinder to camshaft and check
the camshaft setting.
The camshaft setting is OK if special tool 11 3 240 locates flush
against the cylinder head.
Remove special tool 11 3 240.
If necessary, check adjustment travel of VANOS adjustment unit
and adjust timing of camshaft,
refer to 11 31 505
Remove special tool 11 2 300.
Install dust guard from inspection bore.
RA Checking camshaft timing (M52/S52)
