3 Series E36 328i (M52) COUPE
Grind off weld seams.
Clean reinforcement plate mating surfaces.
Cut out reinforcement plate roughly and remove.
Remove scrap metal.
Cut out reinforcement on tunnel roughly.
Remove scrap metal.
Grind down and straighten mating surfaces.
Note:

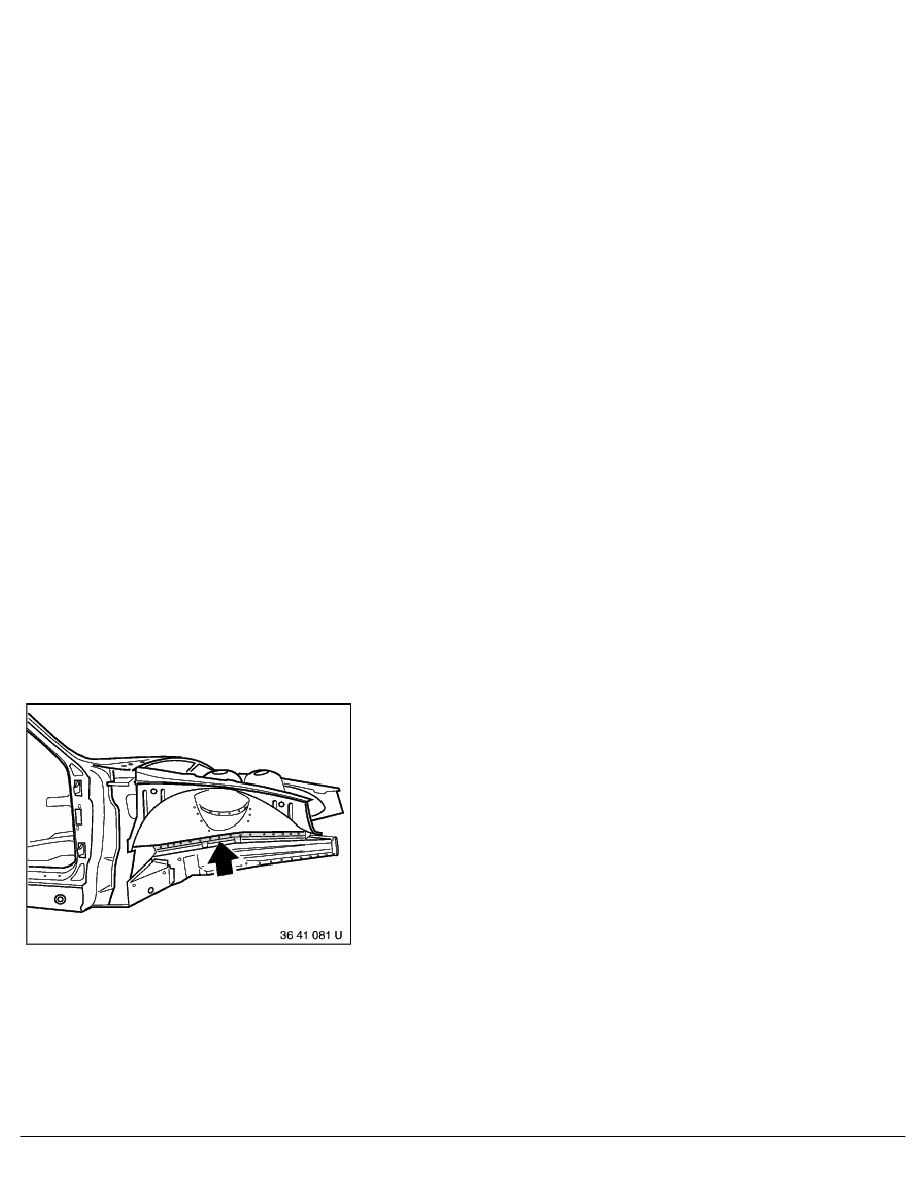

Picture shows an enlarged view of the reinforcement on the
tunnel.
RA Replacing right engine carrier
