3 Series E36 M3 (S50) COUPE
11 31 019
Replacing all camshafts (S50 B30)
Remove bulkhead heater (air collector). This operation is
described in the section on removing complete wiper console,
refer to 61 61 270 .
Remove fan clutch with fan cowl,
refer to 17 11 031/11 52 020
.

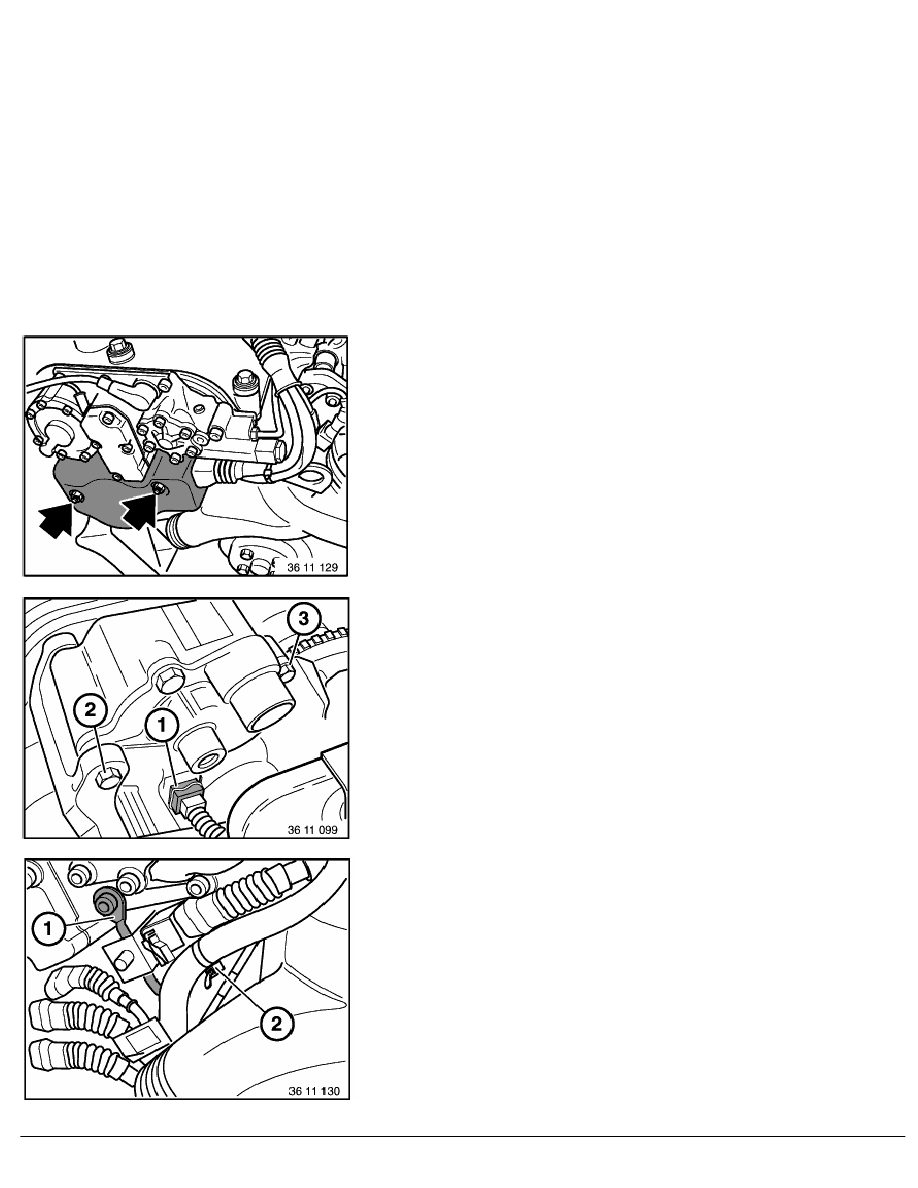

Unfasten screw connection on cover cap.
Disconnect air-pump plug-in connection (1).
Unscrew earth connection (1).
RA Replacing all camshafts (S50 B30)
