3 Series E36 M3 (S50) COUPE
Caution!
On removed VANOS adjustment unit, sprockets on intake and
exhaust camshafts are not positively linked to the camshafts.
To prevent valves making contact with pistons, the crankshaft
must not be rotated in this condition.
Caution!

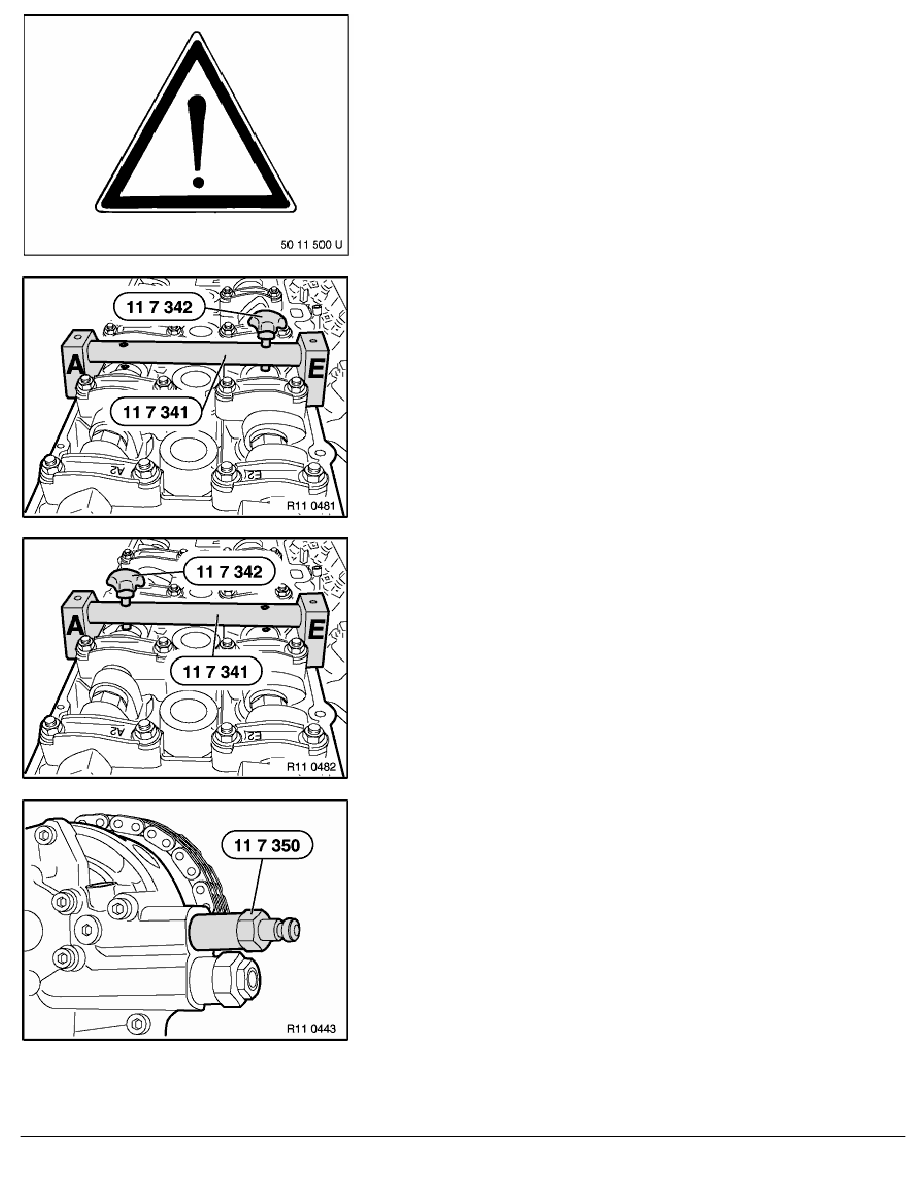

Note direction of installation of special tool 11 7 341.
Fit special tool 11 7 341 / 342 to intake camshaft.
Align intake camshaft at hex head until special tool 11 7 341 is
flush against timing case.
Insert special tool 11 7 342 into exhaust camshaft.
Align exhaust camshaft at hex head until special tool 11 7 341 is
flush against timing case.
Remove special tool 11 7 341 / 342.
Fit special tool 11 7 350 to the removed VANOS adjustment
unit.
Caution!
Cover VANOS adjustment unit. Oil may be sprayed when
compressed air is connected up and when the solenoid valves
are actuated.
Connect up compressed air (2 ... 8 bar).
RA Adjusting timing of camshafts (S50 B32)
