3 Series E36 M3 (S50) COUPE
11 34 004
Checking valve clearance (S50)
Remove and install cylinder-head cover, refer to
11 12 000
Remove and install fan shroud, refer to 17 11 031
Remove and install spark plugs, refer to 12 12 011

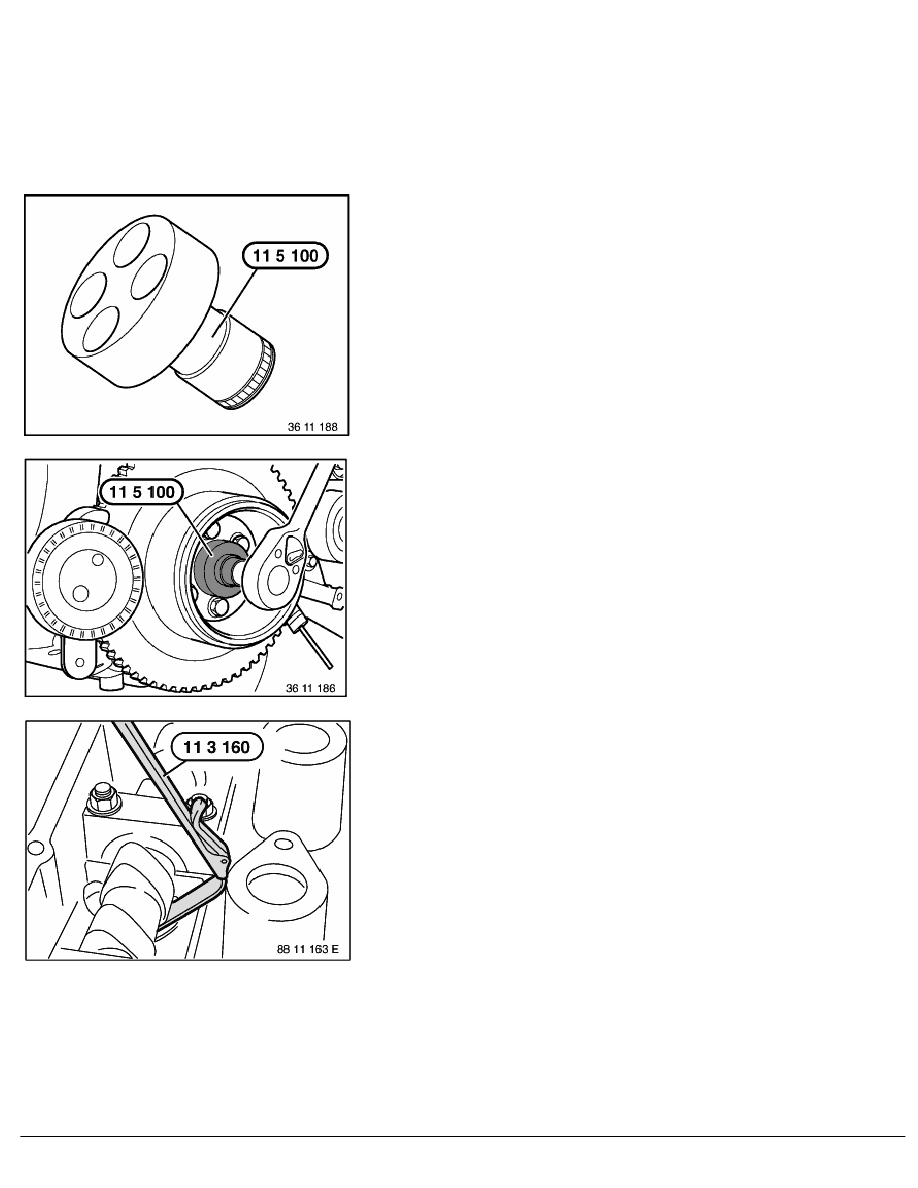

Use Special Tool 11 5 100 to rotate crankshaft.
Fit Special Tool 11 5 100 on four screws on crankshaft hub and
turn engine.
Measure valve clearance with cams pointing upwards.
Compare measured valve clearance with specified valve
clearance,
refer to Technical Data
RA Checking valve clearance (S50)
