3 Series E36 M3 (S50) COUPE

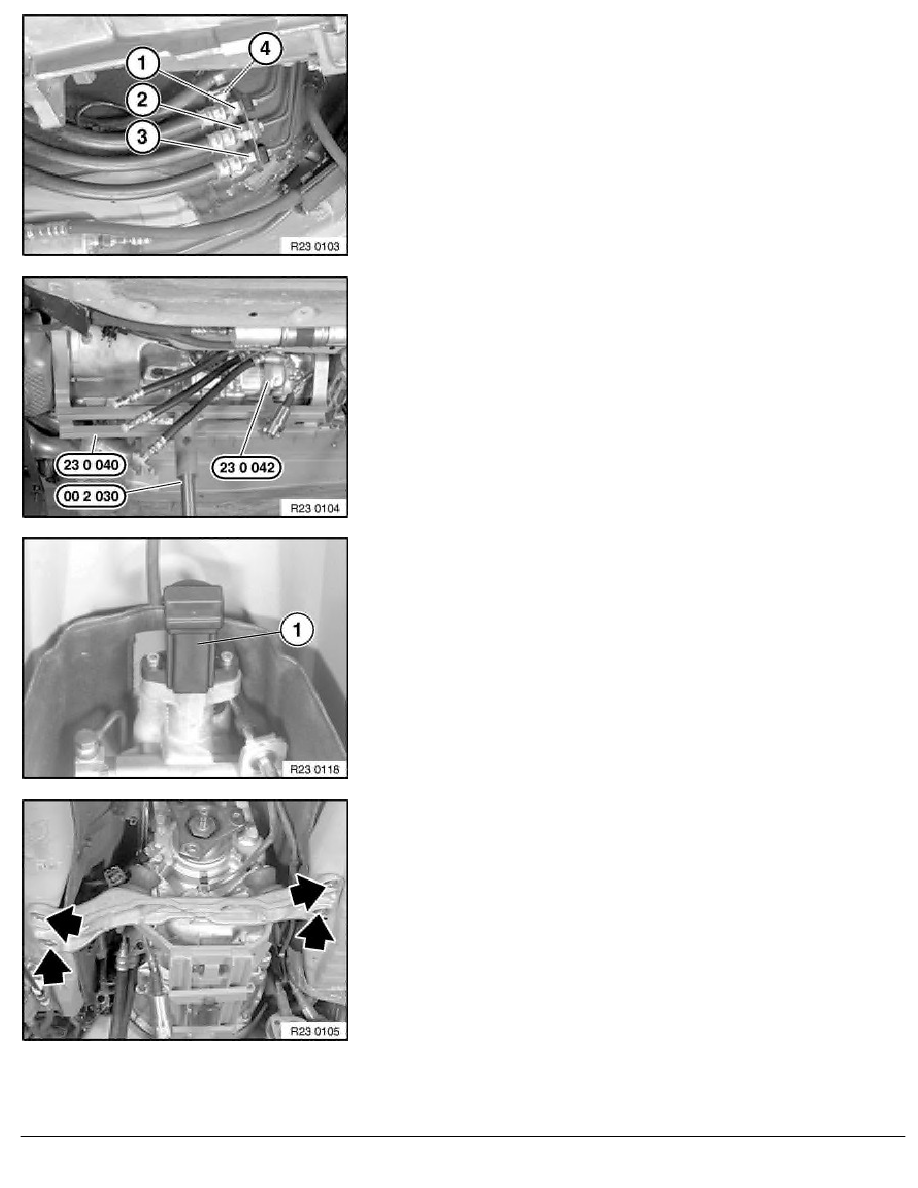

Disconnect hydraulic lines (1... 3) and seal with suitable plastic
plugs.
Unscrew holder (4).
Installation:
Tightening Torque,
refer to Technical Data 21 52 1AZ.
Support transmission with special tool 00 2 030 / 23 0 040 /
23 0 042.
Caution!
Do not support or lift transmission from switch for gear
recognition (1).
Unfasten screws.
Only lower transmission until cylinder head and manifold almost
make contact with engine fire wall and/or heating connections
(visual inspection).
Installation:
Tightening Torque,
refer to Technical Data 23 71 2AZ.
RA Removing and installing transmission (S6S 420G SMG)
