3 Series E36 M3 (S52) CONVER

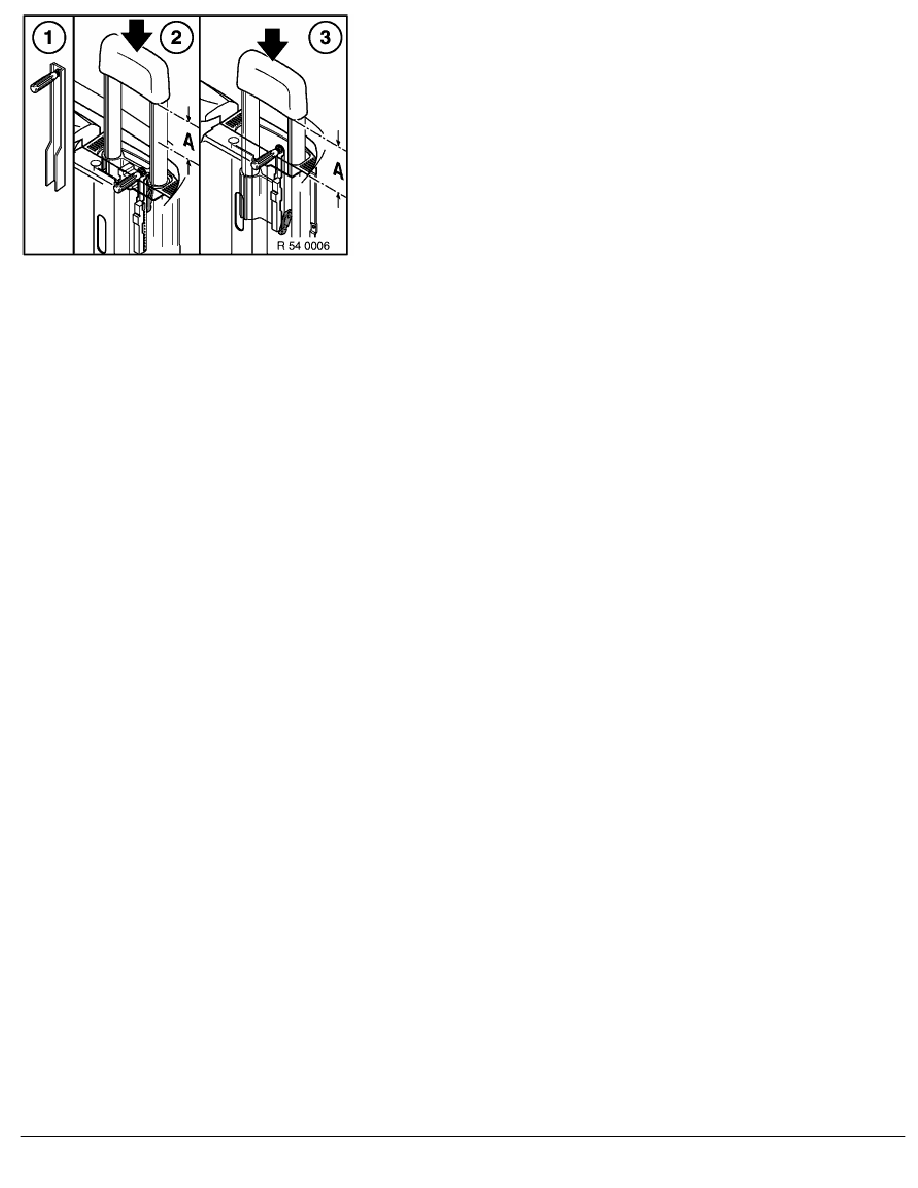

Retraction:
1.
Join together special tool and screwdriver handle (in vehicle
toolkit).
2.
Insert tool in left side of guide until handle locates against
backrest and hold firmly.
3.
Slide rollover bar down to dimension (A) (tool becomes
loose).
Remove tool and push rollover bar downwards until it locates.
Distance (A) = approx. 110 mm
RA Deploying / retracting rollover protection bar (BMW Service Tester / MoDiC)
