3 Series E36 M3 (S52) COUPE

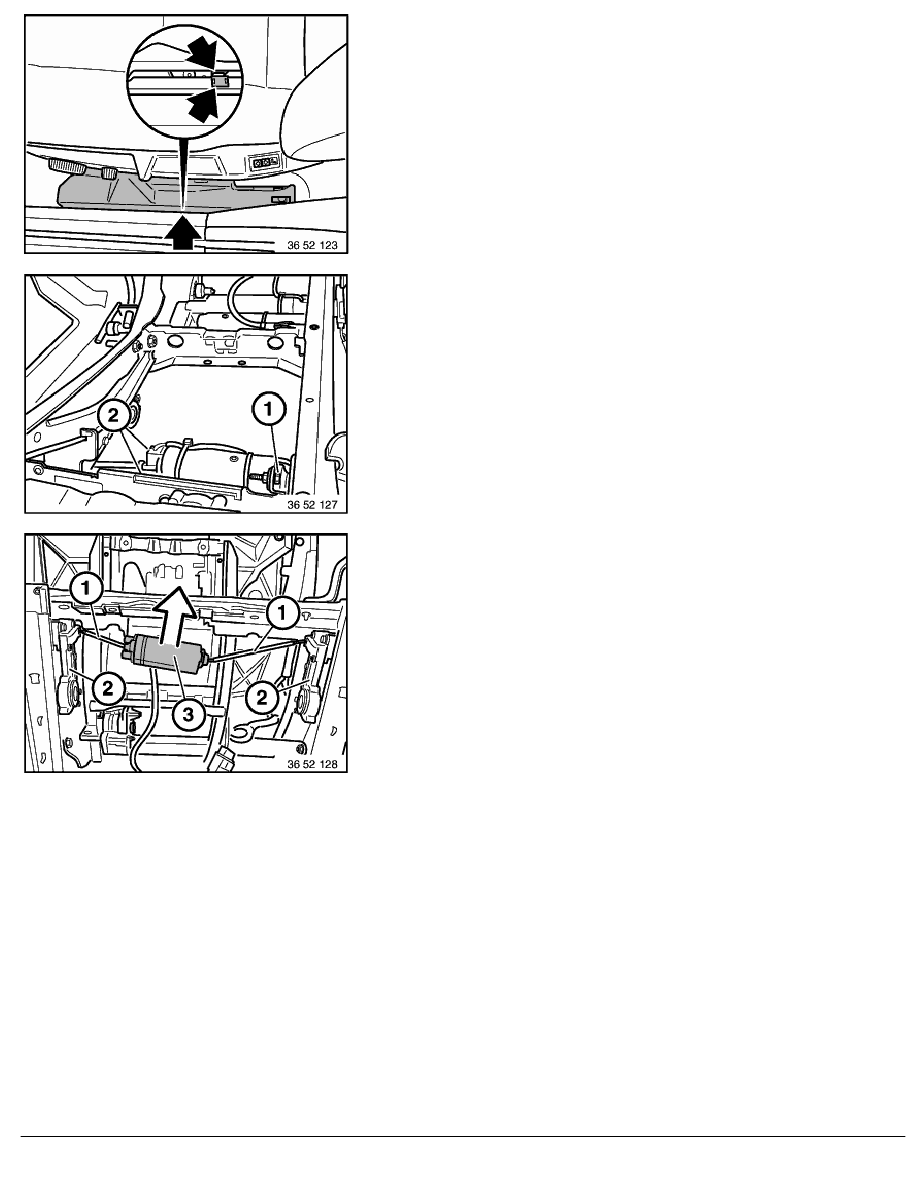

Installation note:
Retainer must fit central to the counterpiece.
Press on plate and install plugs.
Drill off rivet (1).
Unscrew bolts (2).
Installation note:
Replace rivet (1) with M5 x 16 hex. head screw, self-locking
nut M5 and two corrugated washers.
Installation note:
Insert input shaft (1) (bendable) in transmission (2).
Guide drive shafts into drive (3) and tighten drive screws.
RA Removing and installing or replacing seat forward/back drive on left or right fr
