3 Series E36 M3 (S52) COUPE
Installation:

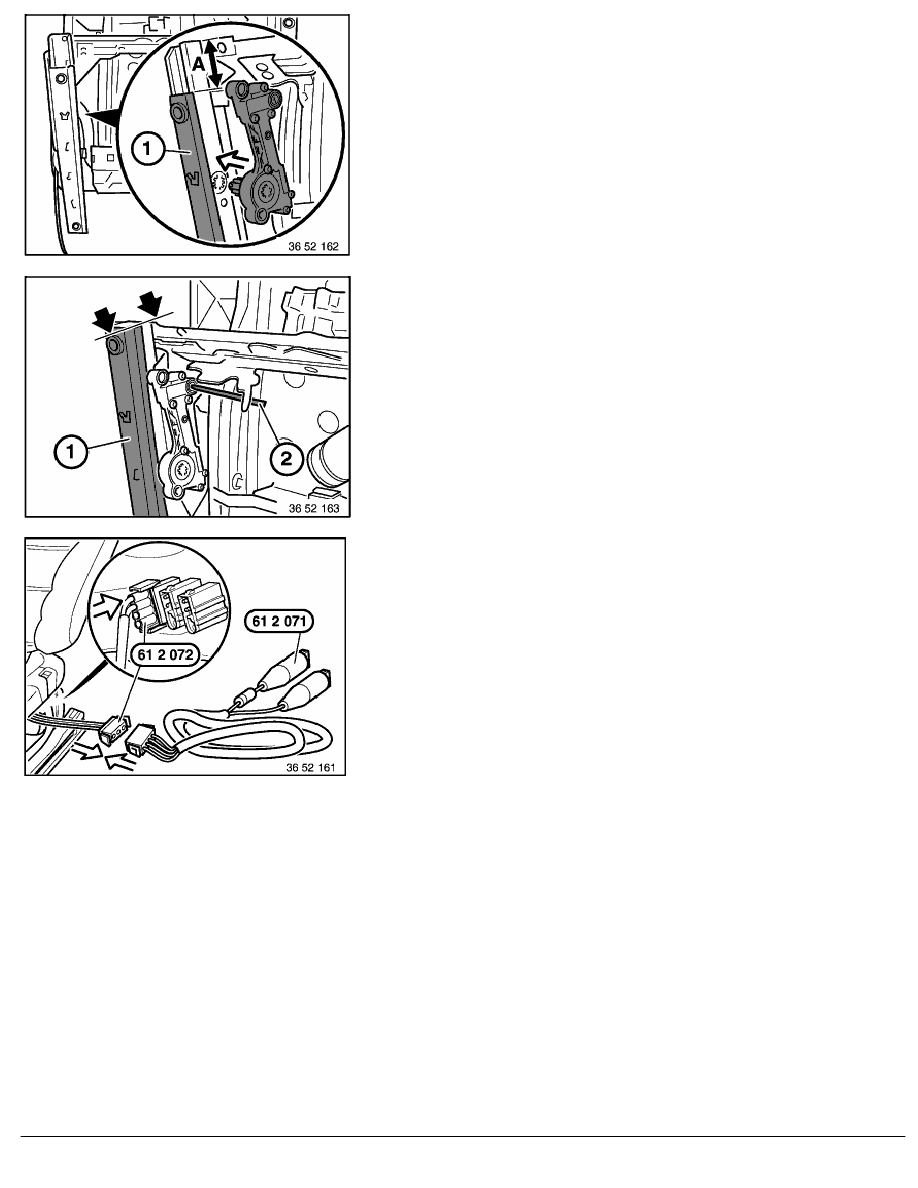

Push back seat rail (1) to distance (A) so that gearboxes can
be installed.
Distance (A) = approx. 60 mm (depending on gearbox position).
Run left and right seat rails (1) to same position via drive
shaft (2) with drive.
Tighten seat rail screws.
Installation:
Connect special tools 61 2 071 and 61 2 072 (adapter
leads) on white plug and 12 V power supply source.
Check function.
RA Removing and installing or replacing left and right seat forward/back gearboxes
