3 Series E36 M3 (S52) COUPE
Pull off earthing cable (1). Remove bulbs (2) and wires. Pull out
bulb holder (3) for parking light.
Fully unscrew adjusting screws (4 and 5) for vertical and lateral
headlight adjustment. Remove reflector.
Installation:
Screw studs in reflector at approximately the same position.
Rotate vertical aim adjuster approx. 45
°
and lever ball pin (1)
laterally out of bracket.

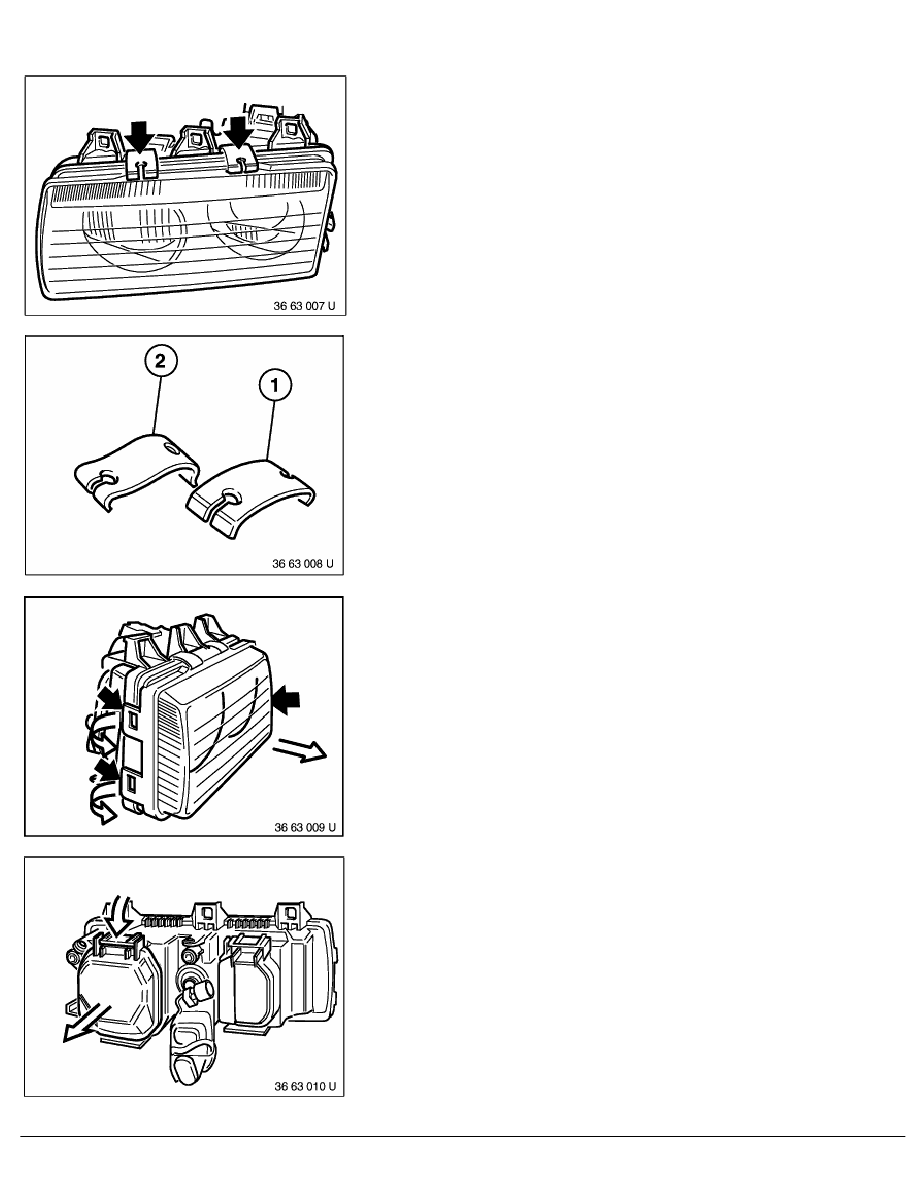

Bosch headlights
Unclip at top and bottom. Remove frame with lens.
RA Replacing reflector for left headlight
