3 Series E36 M3 (S52) COUPE
86 10 ...
Disassembly of front protection bar

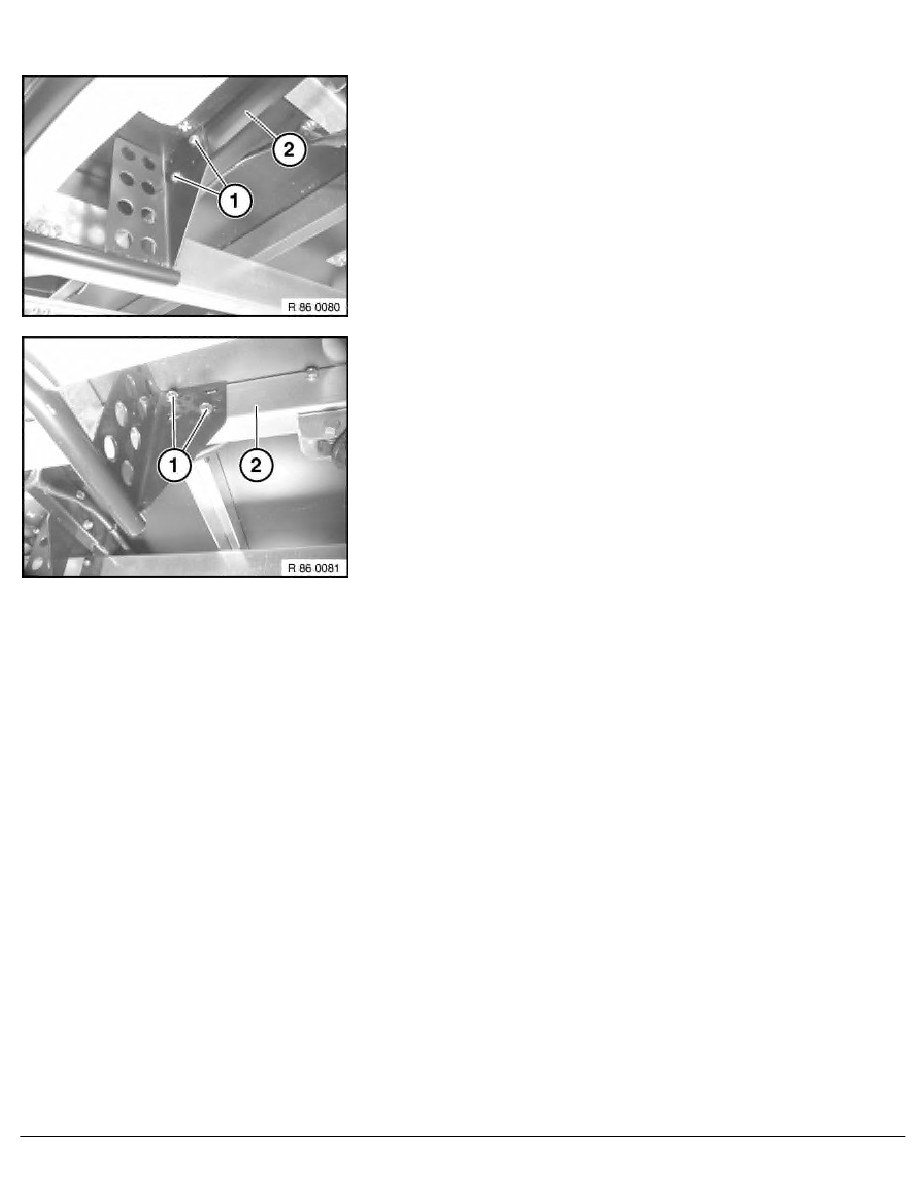

Release screws (1) on cross-member (2).
Installation:
Use new self-locking nuts.
Tightening Torque,
refer to Technical Data 86 10 4AZ.
Installation:
Tightening Torque,
refer to Technical Data 86 10 5AZ.
Release screws (1) on longitudinal member (2).
Installation:
Tightening Torque,
refer to Technical Data 86 10 5AZ.
RA Disassembly of front protection bar
