3 Series E36 M3 (S52) COUPE
00 2 500
Dial gauge holder
In conjunction with:
00 2 510
Note:
- For measuring the crankshaft axial play -
For adjusting the tooth backlash between
bevel drive pinion and ring gear at all final
drives -For checking disk runout
Series:
E30, E31, E32, E34, E36, E36/7, E38, E39,
E46
Storage location:
A13
Order number:
00 2 500

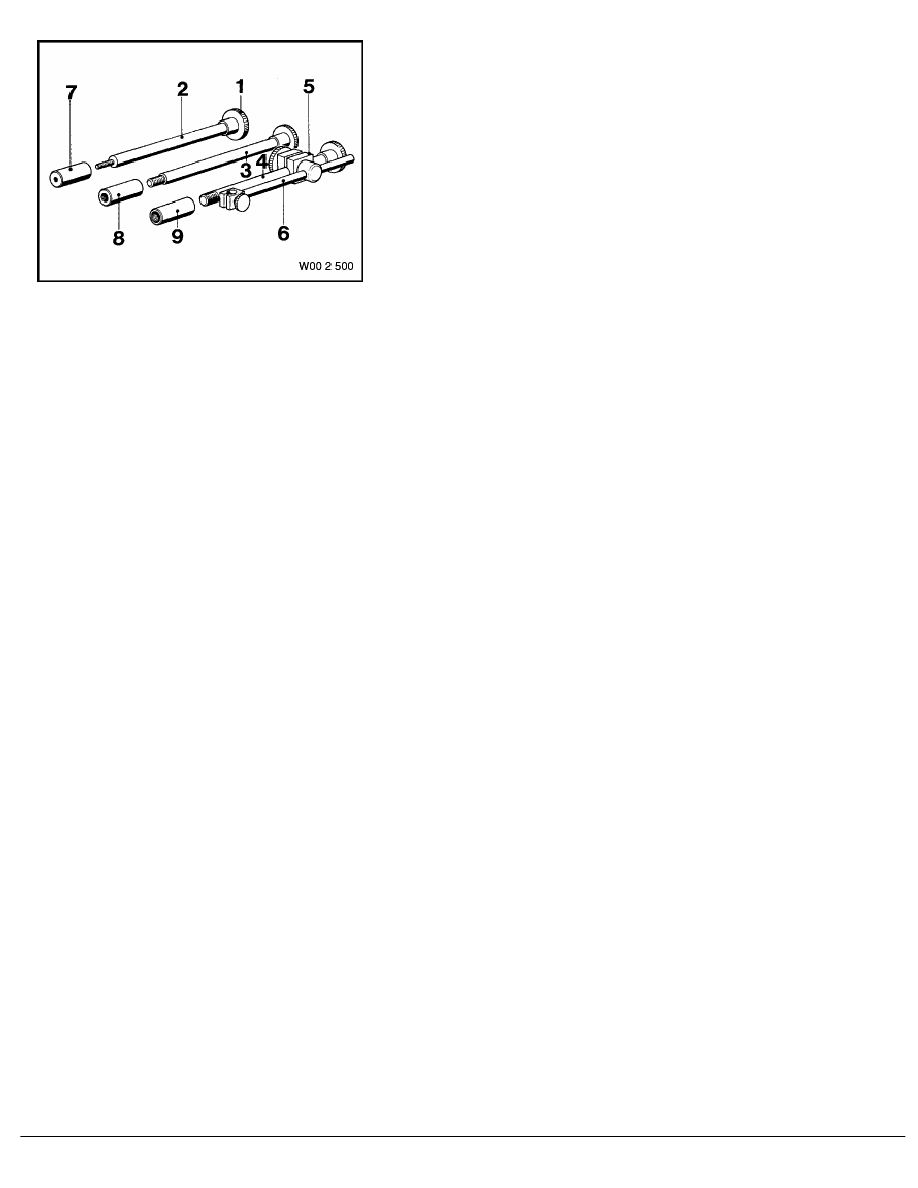

Dial gauge holder
Consisting of:
1 = 00 2 501
Knurled nut (4 x)
2 = 00 2 502
Extension (M6 thread)
3 = 00 2 503
Extension (M8 thread)
4 = 00 2 504
Extension (M10 thread)
5 = 00 2 505
Clamping piece
Note: For extensions
6 = 00 2 506
Clamping piece
Note: For dial gauge
7 = 00 2 507
Connecting piece (M6 thread)
8 = 00 2 508
Connecting piece (M8 thread)
9 = 00 2 509
Connecting piece (M10 thread)
SWZ Dial gauge holder
