3 Series E36 M3 (S52) SAL
24 11 009
Removing and installing/sealing transmission
sump (A5S 300J)

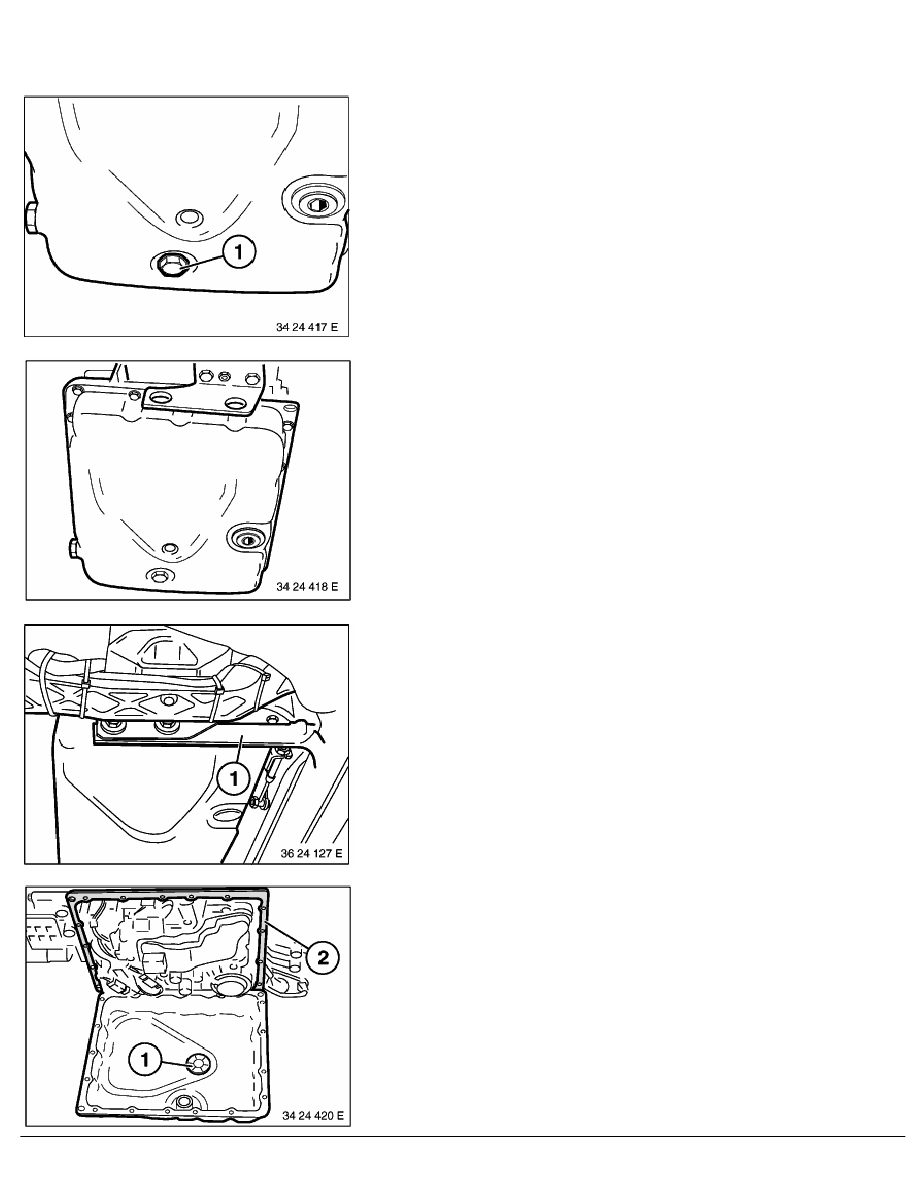

Remove drain plug (1).
Drain off oil.
Installation:
Replace seal.
Tightening torque, refer to Technical Data
Unscrew oil sump.
Take off oil sump with seal.
Installation:
Replace seal.
Remove exhaust carrier (1).
Installation:
Install exhaust carrier so that it is free of tension.
Tightening torque, refer to Technical Data
Clean oil sump.
Caution!
Place magnet (1) in oil sump.
Replace seal (2).
RA Removing and installing/sealing transmission sump (A5S 300J)
