3 Series E36 M3 (S52) SAL
Power-steering test
1.
Open valve (B).
2.
Close valve (A).
3.
Start engine.
4.

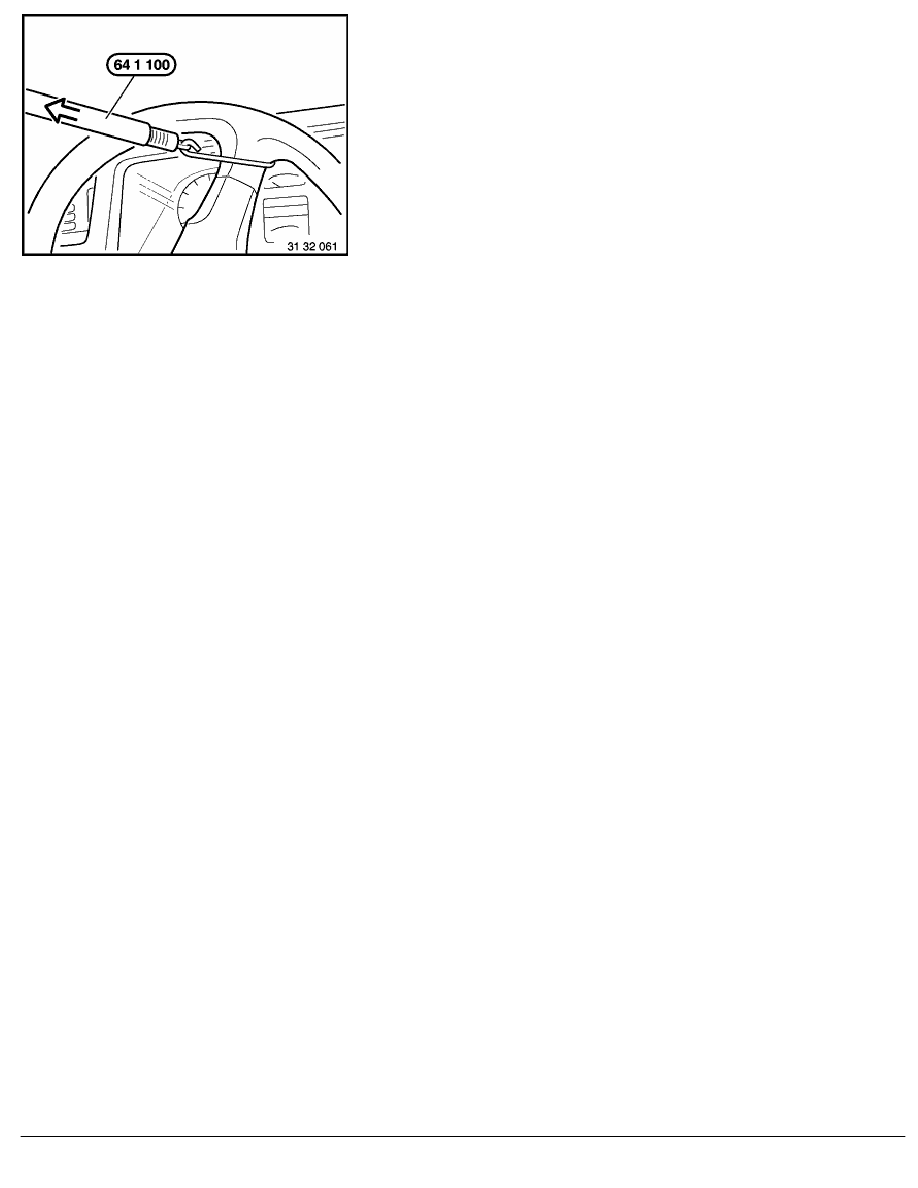

Pull steering wheel against left lock with 100 N (force meter)
for approx. 5 seconds and read off pressure.
5.
Perform same step against right lock.
The steering gear must be replaced if the pressures are below the
previously determined pump pressure.
Note:
After removing special tool, replace sealing rings on hollow bolts
and connect pressure line. Tightening torque,
refer to Technical Data.
Bleed hydraulic system,
refer to 32 13 006.
RA Checking function of power-steering pump
