3 Series E36 M3 (S52) SAL
51 31 015
Repairing damage to windscreens caused by
pitting (stone chips) (clear and tinted
laminated safety glass)

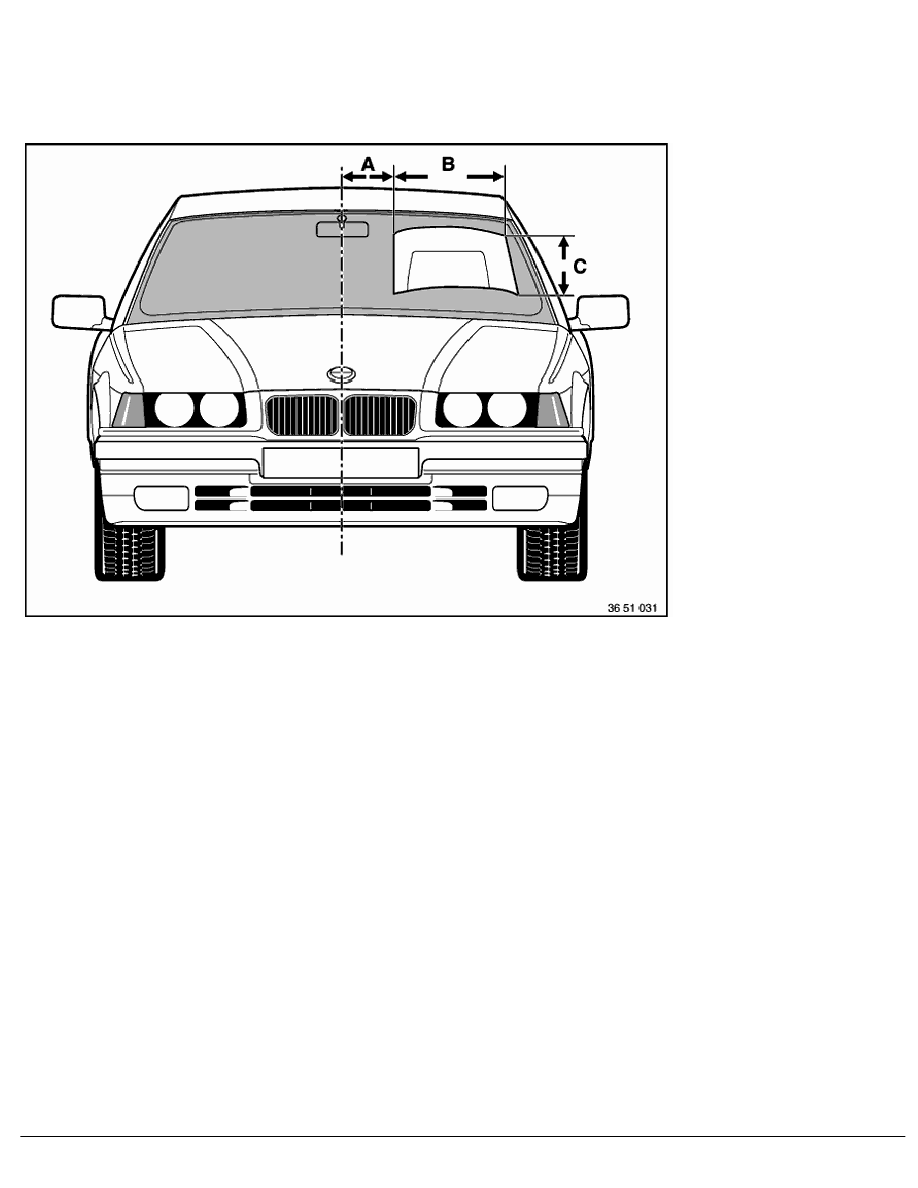

Field of vision (no repairs acceptable):
A
35 mm (gap between field of view / centre of vehicle)
B
Up to end of wiper range, outside (field of view width)
C
Restriction by wiper range (height of field of view)
Important!
Repairs must only be carried out outside of the field of vision (refer to sketch).
If the stone chip damage is outside the field of vision,
refer to 51 31 ...
