3 Series E36 M3 (S52) SAL

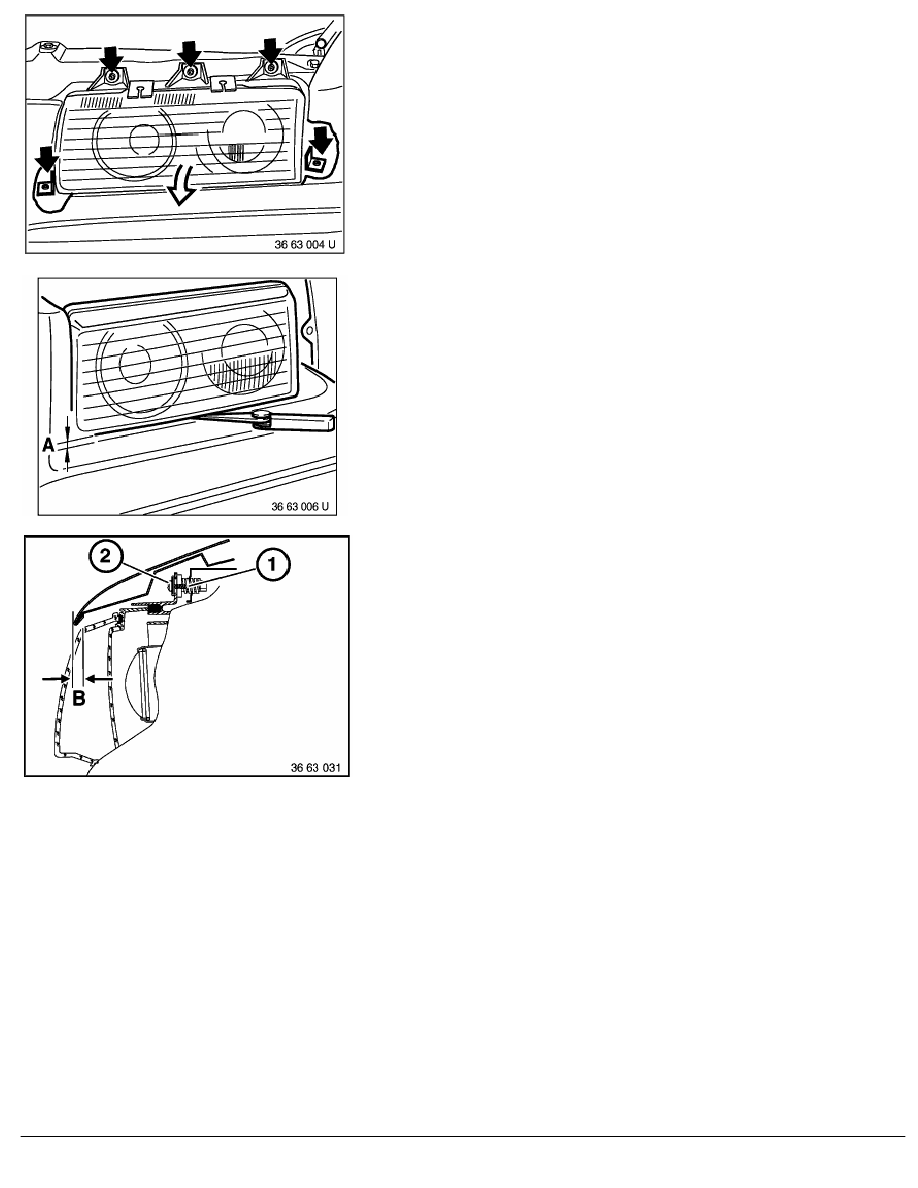

Remove screws and pull out headlight.
When installing a headlight, first screw in lower screws as far as
last thread, at the same time bracing the expanding rivets.
Check gap (A) between front panel and lens, adjusting it to
approx. 2.5 mm by turning lower expanding rivets if necessary.
Then tighten screws while counterholding expanding rivets.
Close hood and check protruding amount (B).
Adjust to approx. 1.5 mm if necessary by turning upper expanding
rivets (1). Then tighten down top screws (2), bracing against the
expanding rivets.
Adjusting headlights,
refer to 63 10 004
RA Removing and installing/replacing complete left-hand headlight assembly
