3 Series E36 M3 (S52) SAL

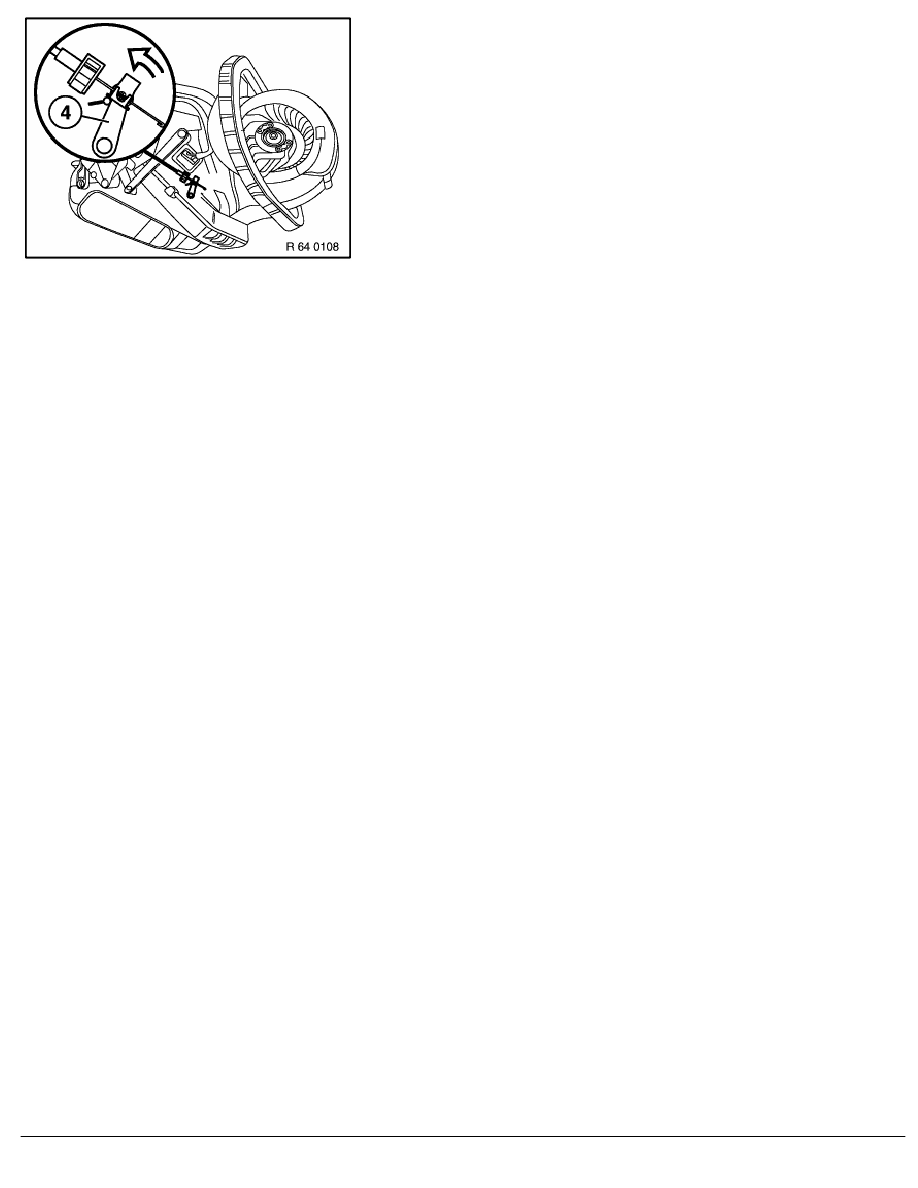

Press actuator lever (4) in direction of arrow as far as case detent
and clip in Bowden cable. Turn rotary knob (3) firmly in direction of
HOT as far as stop (approx. 4 o'clock). During this procedure,
Bowden cable core pulls through clip into correct position, thereby
eliminating all excess clearance in the system.
RA Adjust Bowden cable for ventilation flap
